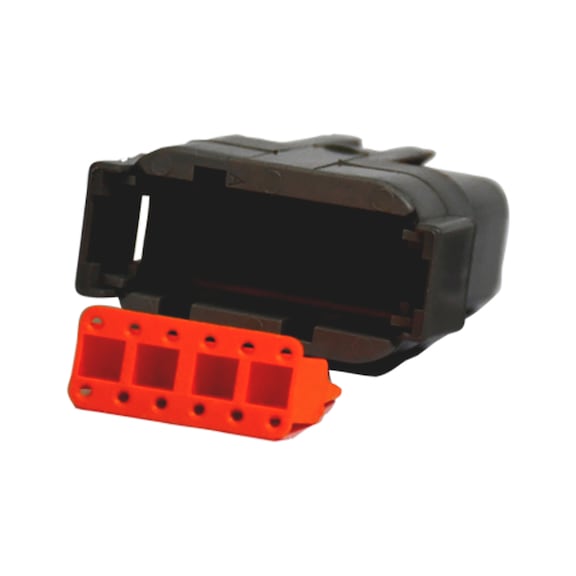

Deutsch DTM Series Connectors Pin & Socket Housing | IP67 Rated | 12 Contacts | Thermoplastic Material | by Wurth
Deutsch DTM Series Connectors Pin Housing & Socket Housing is designed for OEM applications requiring reliable, environmentally sealed electrical connections. With a robust IP67 rating, this connector ensures protection against moisture and dust, making it ideal for automotive and industrial machinery wiring. Built from durable thermoplastic, it supports 12 contacts with a continuous current capacity of 7.5A, ensuring long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deutsch DTM Series Connectors Pin & Socket Housing | IP67 Rated | 12 Contacts | Thermoplastic Material | by Wurth
Brand: Wurth
SKU: 555204120
Alternatively Known As: DTM Connector Housing, Deutsch DTM Pin Socket, Wurth DTM Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 12
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections for reliable performance
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous current capacity
- Industry proven design for durability and secure connections
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive, industrial machinery, and equipment wiring
- Environments needing IP67 rated connectors for moisture and dust protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, reducing failure rates and waste
- Durable thermoplastic material extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Deutsch DTM Series Connectors Pin Housing & Socket Housing is available for immediate purchase, ideal for OEM and industrial electrical connection applications.
