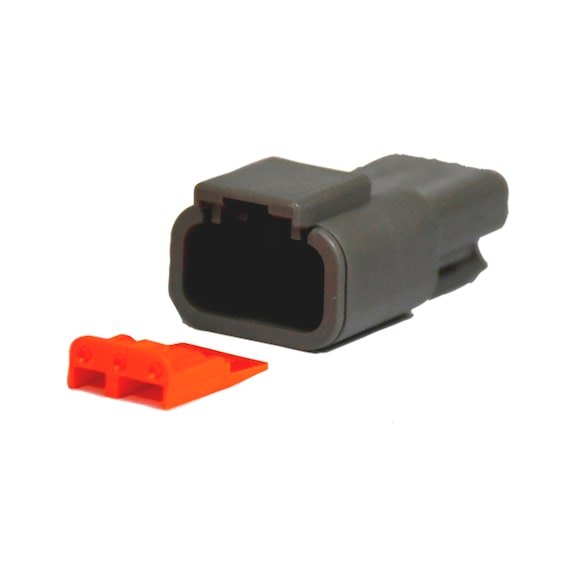

Deutsch DTM Series Connectors Pin & Socket Housing | IP67 Rated | 3 Contacts | Environmentally Sealed | by Wurth
Deutsch DTM Series Connectors Pin & Socket Housing offers robust, environmentally sealed connections ideal for OEM and industrial applications. With a temperature resistance of -55 to 125 °C and IP67 protection, this housing ensures reliable performance in harsh environments. Designed for professional installation, it features latched mating wedgelocks for secure contact alignment and retention.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Deutsch DTM Series Connectors Pin & Socket Housing | IP67 Rated | 3 Contacts | Environmentally Sealed | by Wurth
Brand: Wurth
SKU: 55520430
Alternatively Known As: DTM Connector Housing, Deutsch DTM Pin Socket, Wurth DTM Connector
Technical Specifications
- Material: Thermoplastic plastic
- Number of contacts: 3
- Temperature resistance: -55 to 125 °C
- IP protection class: IP67
- Max current: 7.5 A continuous
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Environmentally sealed connections suitable for harsh conditions
- Latched mating wedgelocks ensure contact alignment and retention
- Accepts size 20 contacts with 7.5A continuous capacity
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and connection integrity.
Applications
- OEM applications requiring environmentally sealed electrical connections
- Automotive and industrial equipment wiring
- Harsh environment electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and moisture, enhancing durability and reducing waste from failures
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Deutsch DTM Series Connectors Pin Housing & Socket Housing is available now for immediate purchase. Ideal for OEM and industrial applications requiring robust, sealed electrical connections.
