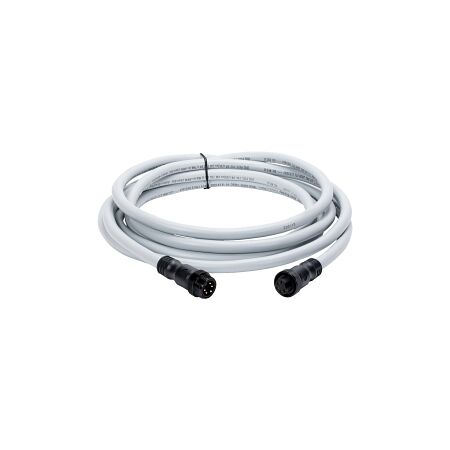

DeviceNet Thick Cable M12 Male 4m 8A 300V IP67 Grey NHP
This heavy duty five pole cable provides robust connectivity for industrial automation systems and commercial building management networks. Engineered with a durable plastic housing and gold-plated contacts, it features a 12.2mm cable diameter designed to withstand tough industrial environments. An IP67 protection rating ensures reliable dust and water resistance across demanding commercial control setups. See the full description below for dimensions, ratings, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 8 A
- Rated Voltage: 300 V
- Number of Poles: 5
- Type of Plug: Male (plug)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Polyvinyl chloride (PVC)
- Material of Contact Surface: Gold
- Degree of Protection: IP67
- AWG Size: 18
- Cable Diameter: 12.2 mm
- Operating Temperature: -20-70 °C
- Dimensions (H x L x W): 22 mm x 4000 mm x 22 mm
- Weight: 0.5 kg
Key Features
- Rated current: 8 A
- Rated voltage: 300 V
- IP67 protection rating for dust and water resistance
- Freely positionable mounting method
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control networks
- Commercial: Building management systems, data communication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 1485 DeviceNet Cable Thick Grey Mini Male 4m is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
FAQ
Q: What are the electrical ratings of this DeviceNet cable?
A: It's rated for 8A at 300V, suitable for industrial DeviceNet control networks.
Q: Is this cable protected against dust and moisture?
A: Yes, it has an IP67 rating for dust and water resistance.
For a female end-to-end connection, the DeviceNet thick cable M12 female offers matching gold-plated contacts and IP67 protection.
Trunk lines layout can be extended using a DeviceNet KwikLink trunk cable built to the same IP67 industrial standard.
Where a shielded connection type is needed, a CAN cable provides a 5-pin separate network wiring for control systems.
