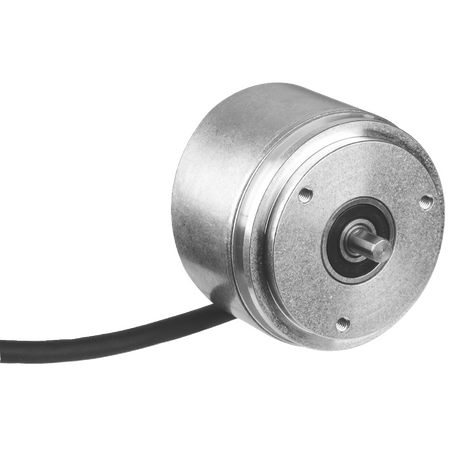

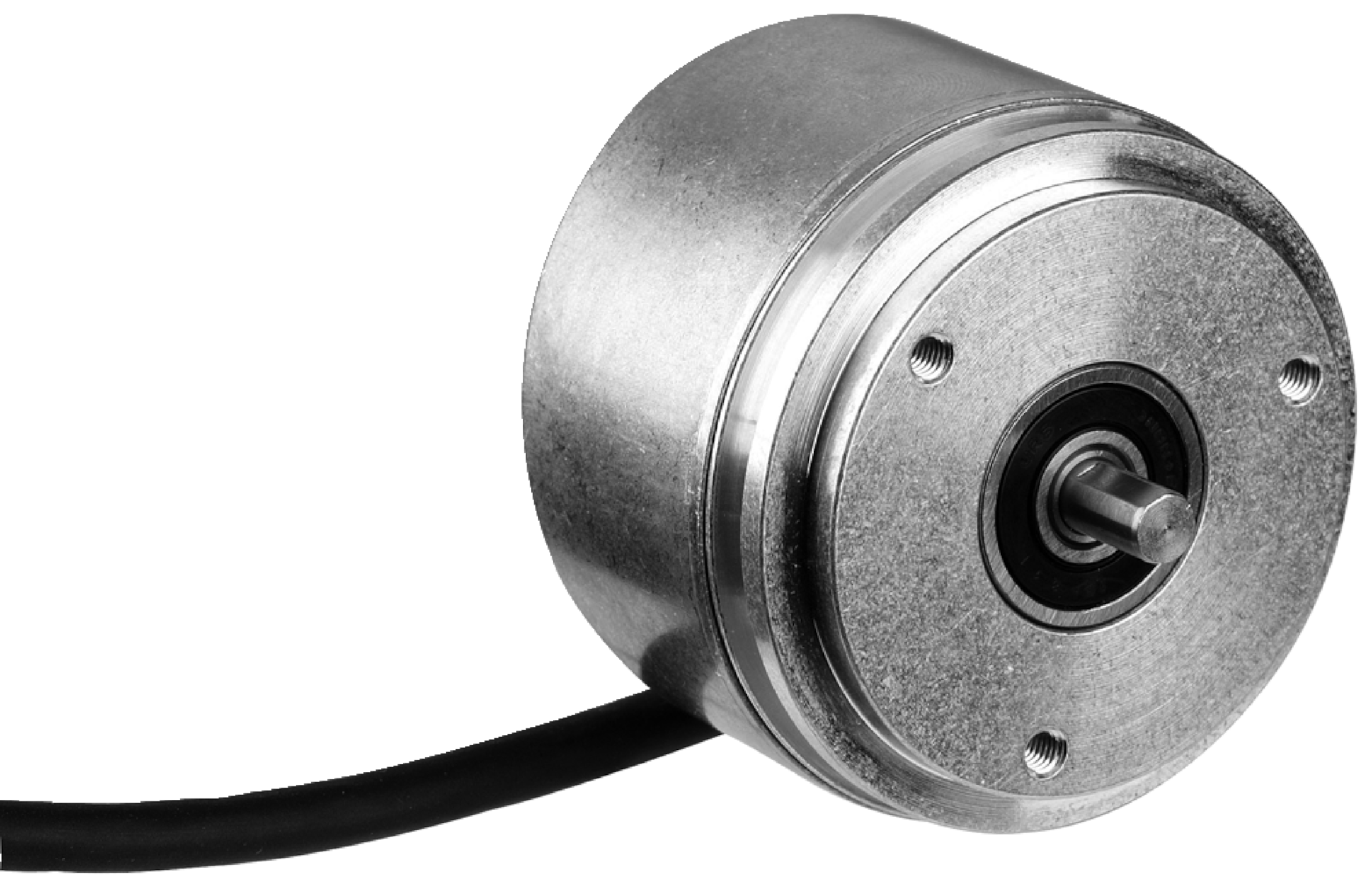

DFS60B-S1PK00S04 | Incremental encoders
The SICK DFS60B-S1PK00S04 is a high-precision incremental encoder featuring 3600 pulses per revolution, robust aluminum housing, and advanced protection for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DFS60B-S1PK00S04 | Incremental encoders
Brand: SICK
SKU: 1116291
Alternatively Known As: Incremental rotary encoder, rotary encoder 3600 PPR, HTL encoder, solid shaft encoder, servo flange encoder
Technical Specifications
- Pulses per revolution: 3600 preprogrammed HTL
- Measuring step: 90° electric/pulses per revolution
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull, 6-channel
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 32 V
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 housing side, IP65 shaft side
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- Preprogrammed 3600 pulses per revolution (HTL output)
- 6-channel incremental communication interface with HTL / Push pull
- Programmable and configurable output settings
- High accuracy with ±0.05° error limits and ±0.01° measuring step deviation
- Robust mechanical design with solid shaft and servo flange
- IP67 rated housing side and cable connection, IP65 shaft side
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.7 W without load
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1PK00S04 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
