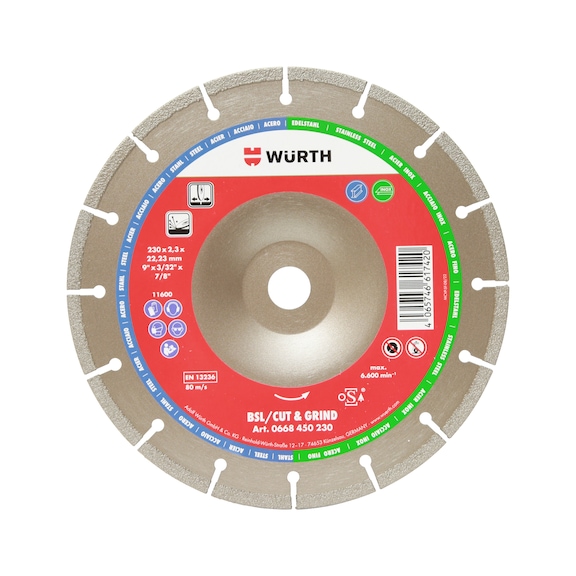

Diamond Cutting Disc 230mm | Vacuum Brazed Coating | Long Service Life | by Wurth
The Diamond Cutting Disc 230mm is engineered for cutting and grinding metal materials up to 10 mm thick. Featuring a special vacuum-brazed diamond coating for enhanced durability and an extremely long service life, this disc minimizes sparks and dust pollution, making it ideal for industrial and workshop applications. Designed for straight cutting, it ensures precision and efficiency in every task.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Cutting Disc 230mm | Vacuum Brazed Coating | Long Service Life | by Wurth
Brand: Wurth
SKU: 668450230
Alternatively Known As: Diamond Cutting Disc, Diamond Grinding Disc, Metal Cutting Disc, Vacuum Brazed Diamond Blade
Technical Specifications
- Diameter: 230 mm
- Segment thickness: 2.3 mm
- Number of segments: 16 PCS
- Segment height: 7 mm
- Design: Cranked
- Segment connection: BSL (vacuum-brazed diamond coating)
- Max rotation speed: 6600 rpm
- Max circumferential speed: 80 m/s
- EN standard: 13236
- Versatility rating: 3 of 4 points
- Service life rating: 4 of 4 points
- Cutting speed rating: 2 of 4 points
- Cut quality rating: 1 of 4 points
- Dimensions (H x L x W): 7mm x 230mm x 230mm
- Weight: 1.2 kg
Key Features
- Special vacuum-brazed diamond coating (BSL) for durability
- Extremely long service life with 100% recyclability
- Extremely break-proof with fewer sparks
- No additional dust and odour pollution
- No reduction in external diameter during use
- Suitable for grinding as well as cutting
- Insensitive to temperature changes and moisture
- No storage restrictions
- Designed for straight cutting only to avoid blade damage
- Max rotation speed 6600 rpm and max circumferential speed 80 m/s
Professional Installation Requirements
- Clamping and installation must be performed only by a trained specialist using clean clamping flanges of the same size. Use appropriate protective covers and follow safety instructions to avoid injury.
Applications
- Cutting metal materials up to 10 mm thickness
- Grinding tasks including deburring, chamfering, derusting
- Removing varnishes and paints
- Welding seam processing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- 100% recyclable materials reduce environmental impact
- Fewer sparks and no additional dust or odour pollution during use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Versatile Diamond Disc 230mm is available now for immediate purchase. Ideal for metal cutting and grinding applications in industrial and workshop settings.
