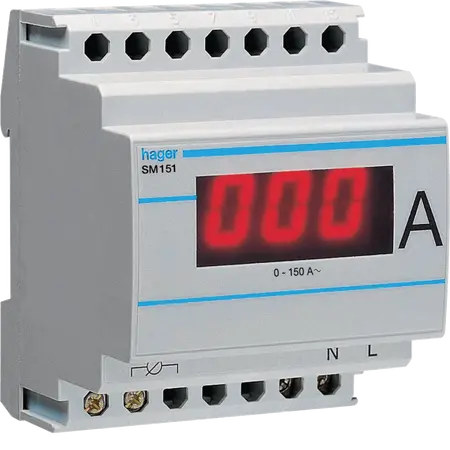

Digital Ammeter 0-150A | Indirect Reading | DIN Rail Mount | Hager

BRAND: :hager
SKU: SM151
$415.30 List price: $531.10
+
Digital ammeter with 0-150A range and indirect reading—ideal for industrial, commercial, and residential energy monitoring. Built for precision with a digital display and DIN rail mounting.

Product Name/Title: Digital ammeter 0-150A indirect reading

Brand: Hager

SKU: SM151

Alternatively Known As: Digital Current Meter, Indirect Reading Ammeter, DIN Rail Ammeter

Technical Specifications
  • Current measurement range: 0 - 150 A
  • Operating temperature: -10 to 55 °C
  • Storage/transport temperature: -40 to 70 °C
  • Power consumption: 1 VA
  • Total power loss under IN: 1 W
  • Ingress Protection (IP) class: IP20
  • Frequency: 45 - 65 Hz
  • Connection cross-section for flexible conductor: 6 mm²
  • Connection cross-section for rigid conductor: 10 mm²
  • Dimensions (H x L x W): 85mm x 54mm x 70mm
  • Weight: 0.5 kg
Key Features
  • Digital display for easy reading of current measurements.
  • Accuracy class of 0.01 for precise measurements.
  • Suitable for mounting on DIN rail.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Monitoring electrical systems and equipment
  • Commercial: Energy management in buildings
  • Residential: Home energy monitoring
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Digital Ammeter 0-150A Indirect Reading is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.

SM151 (SM151, 210 Kb) [Download]

reach_declaration_SM151.pdf (reach_declaration_SM151.pdf, 103 Kb) [Download]

rohs_declaration_SM151.pdf (rohs_declaration_SM151.pdf, 104 Kb) [Download]

DIGITALVOLTMETERAMMETERHOURCOUNTERS.pdf (DIGITALVOLTMETERAMMETERHOURCOUNTERS.pdf, 133 Kb) [Download]
