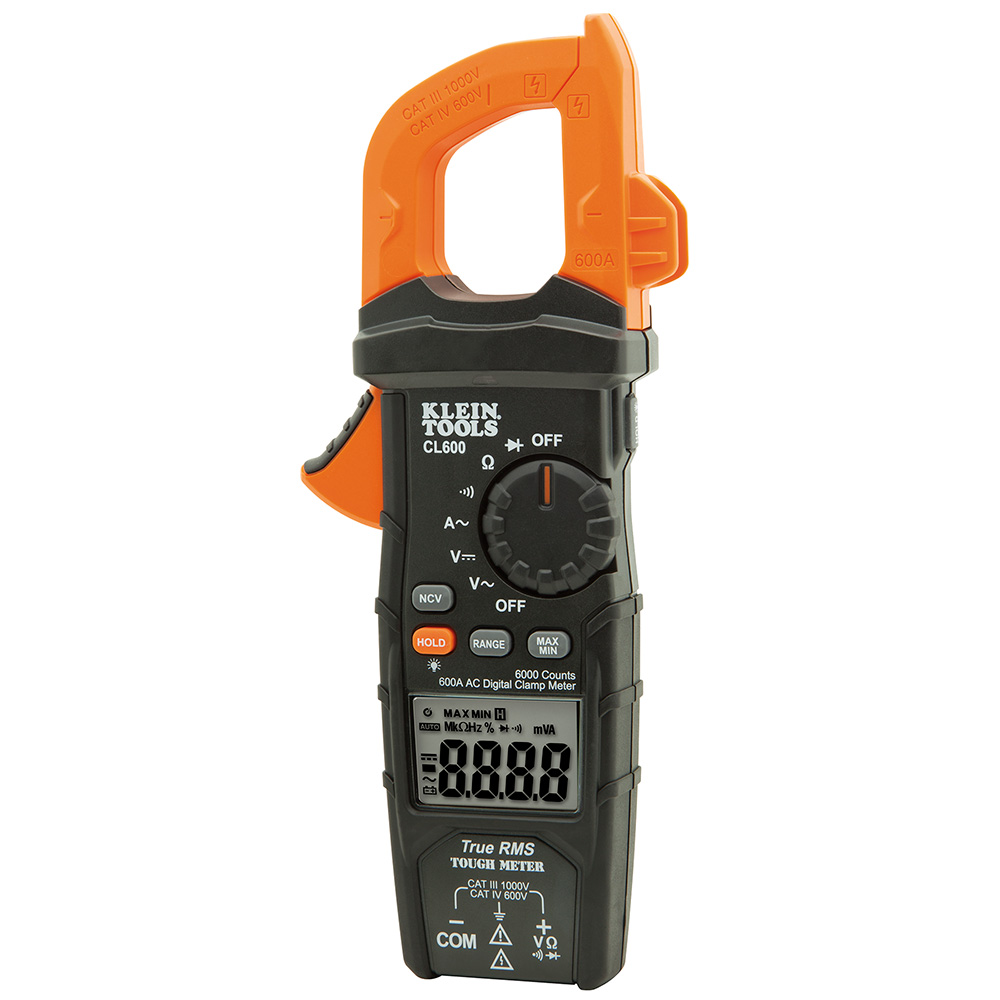

Digital Clamp Meter | True RMS | AC Auto-Ranging | 600 Amp | @Each by Wattmaster
The Digital Clamp Meter with True RMS technology and AC auto-ranging capability is perfect for accurate electrical testing. Measuring up to 600A and 1000V AC/DC, it's designed for electricians and professionals in residential and light-industrial environments. With a durable design that withstands drops and a 6,000-count LCD display, this meter ensures reliable performance and safety in all applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter | True RMS | AC Auto-Ranging | 600 Amp | @Each by Wattmaster
Brand: Wattmaster
SKU: A-CL600
Alternatively Known As: True RMS Clamp Meter, AC Clamp Meter, Digital Clamp Meter 600A, Electrical Clamp Meter, Auto-Ranging Clamp Meter

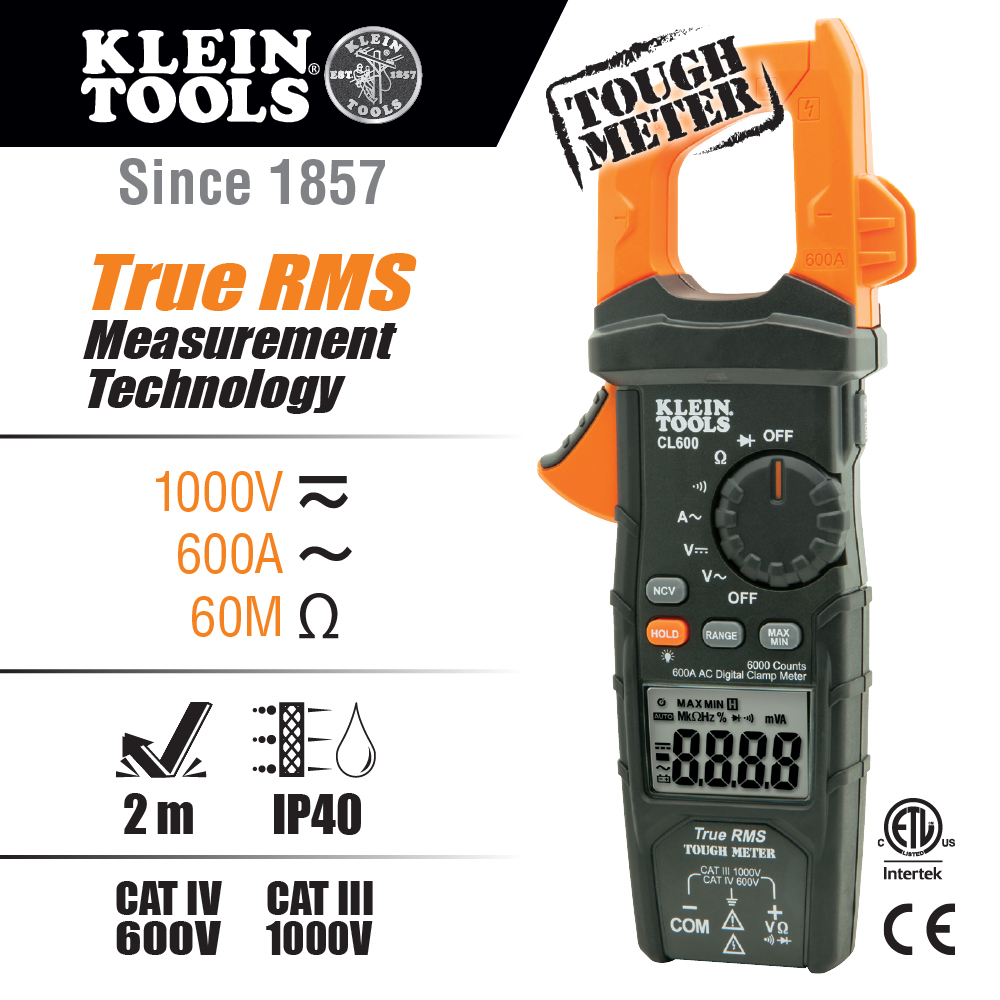

Technical Specifications
- Clamp measures AC current up to 600A
- Voltage measurement up to 1000 V AC/DC
- Resistance measurement up to 60 MΩ
- 6,000-count LCD display
- Jaw size: 35 mm (1.38 inches)
- Ingress Protection: IP40
- Safety rating: CAT IV 600 V, CAT III 1000 V, double insulation
- Operating altitude: up to 2000 m
- Drop protection: withstands 2 m drop
- Power: 2 x AAA batteries included
- Dimensions (H x L x W): 39mm x 231mm x 97mm
- Weight: 0.335 kg
Key Features
- Automatically ranging true RMS technology for accurate AC current measurement
- Clamp measures AC current up to 600A

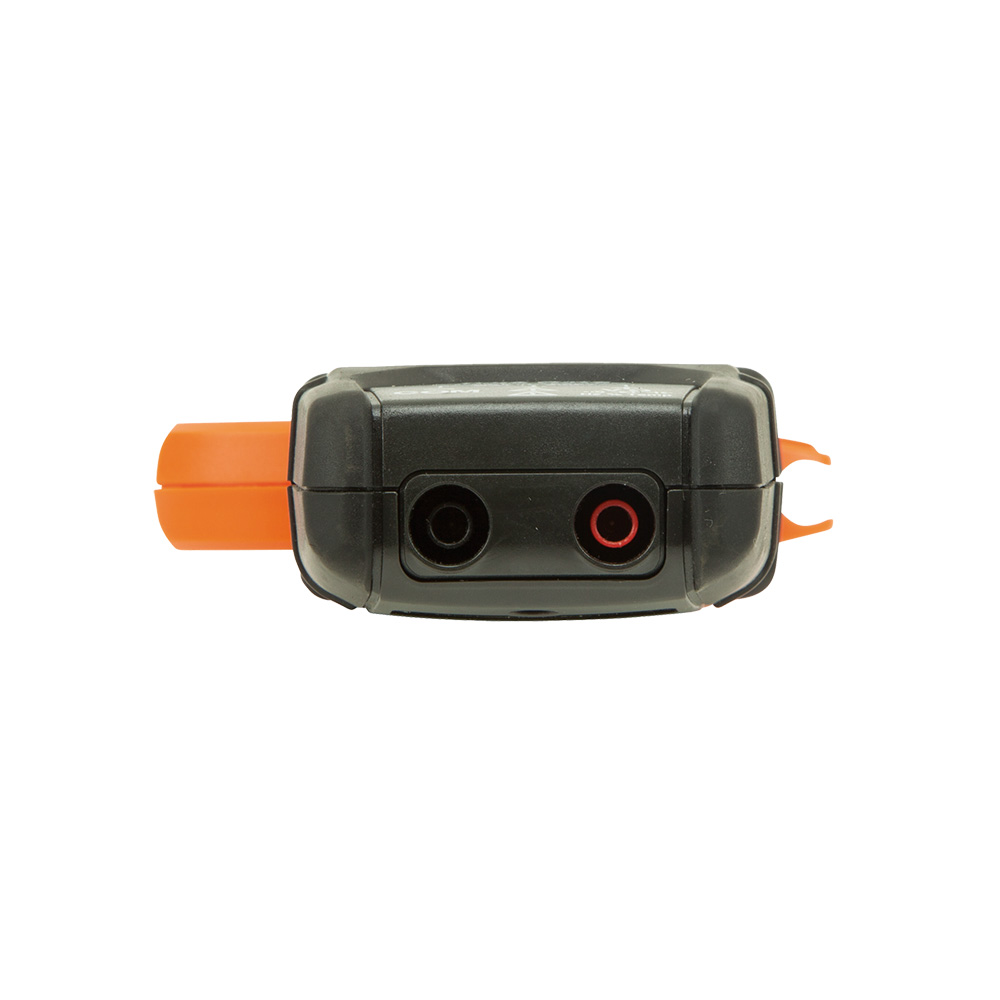

- Test leads measure AC/DC voltage, resistance, continuity, and test diodes
- CAT IV 600V, CAT III 1000V safety rating with double insulation
- Durable design withstands 2 m (6.6 ft) drop
- Low-battery indicator and accessible battery compartment

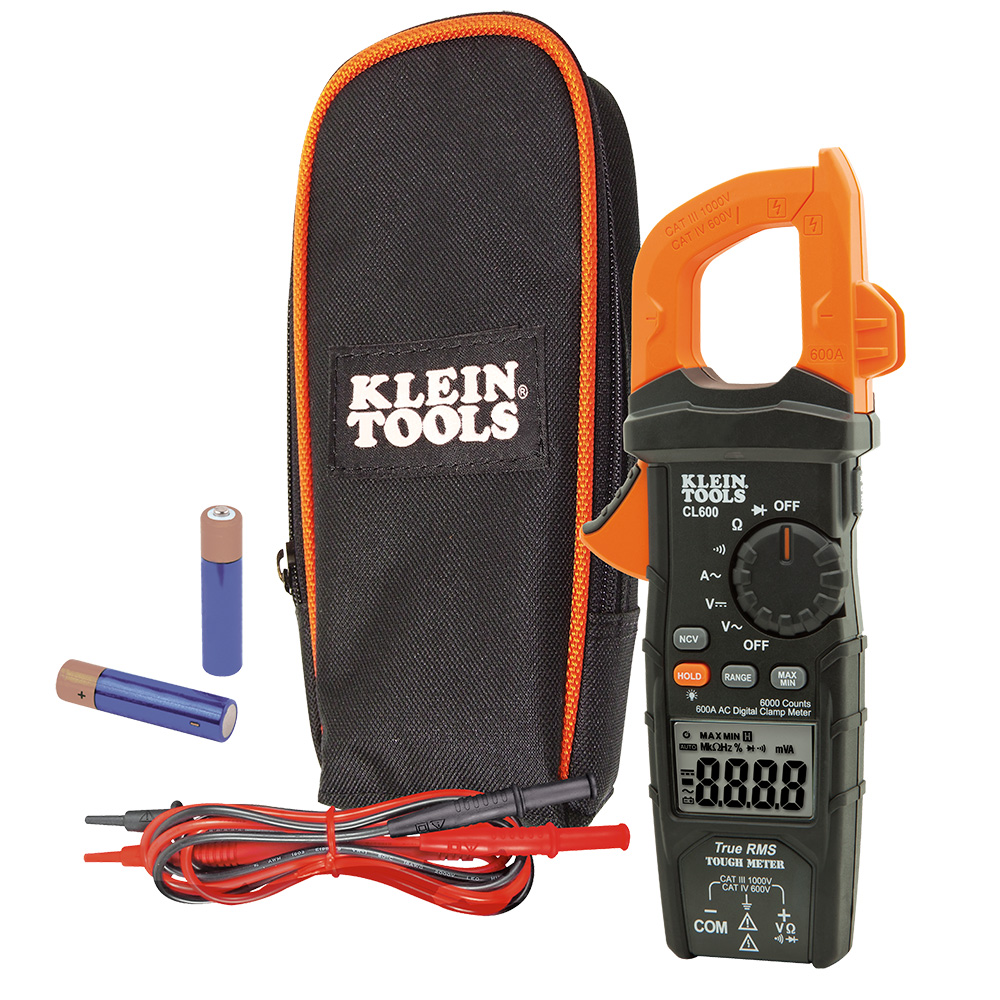

- Includes carrying pouch, test leads, and batteries
- 6,000-count LCD display
- Operating altitude up to 2,000 m (6,562 ft)
- Meets electromagnetic environment requirements for basic and controlled settings
Professional Installation Requirements
- No professional installation required; designed for use by electricians and trained professionals following safety guidelines.
Applications

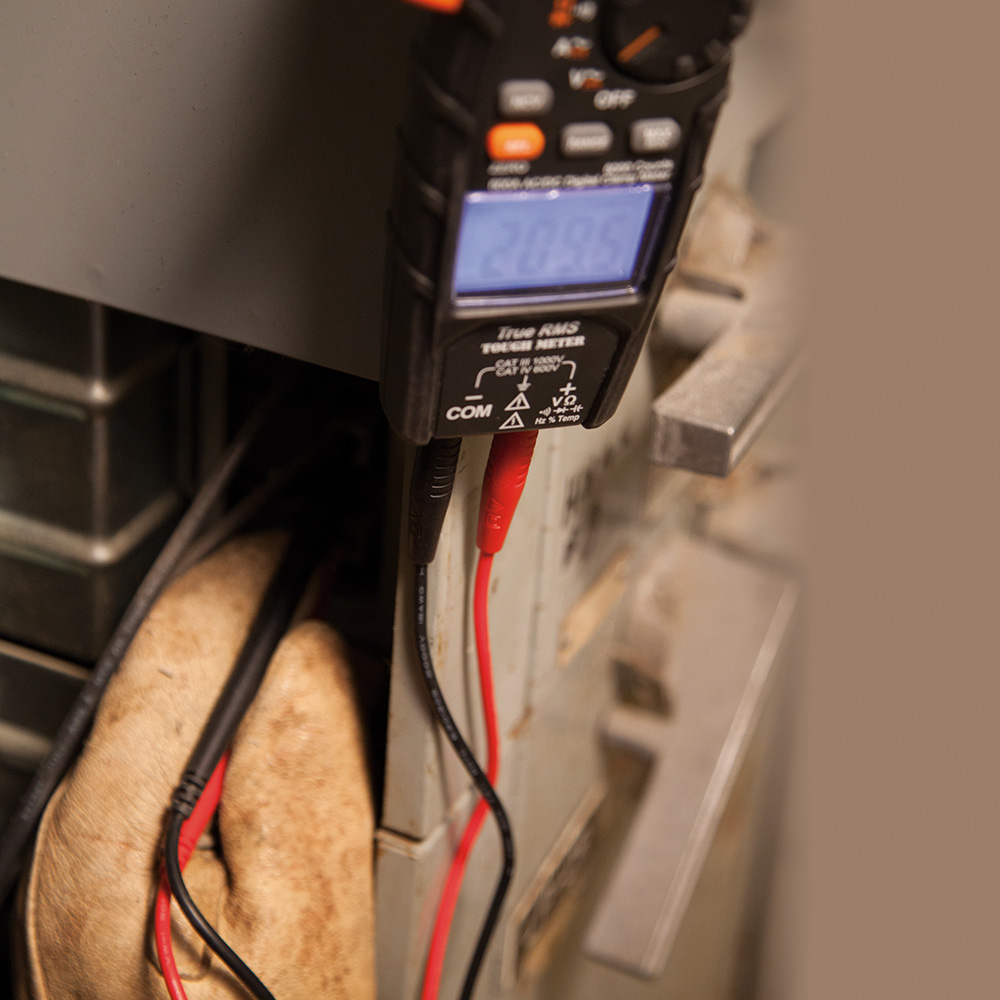

- Electrical testing and troubleshooting in residential, office, and light-industrial environments
- Measuring AC current, AC/DC voltage, resistance, continuity, and diode testing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- True RMS technology ensures accurate measurements reducing the need for repeated tests and waste
- Durable design extends product life, reducing electronic waste
Warranty Information
Warranty details typically provided by the manufacturer; please refer to Wattmaster or retailer for specific warranty terms.
Available Now
The Wattmaster Digital Clamp Meter True RMS AC Auto-Ranging 600 Amp is available for immediate purchase, ideal for electrical testing in residential, commercial, and light industrial applications.
