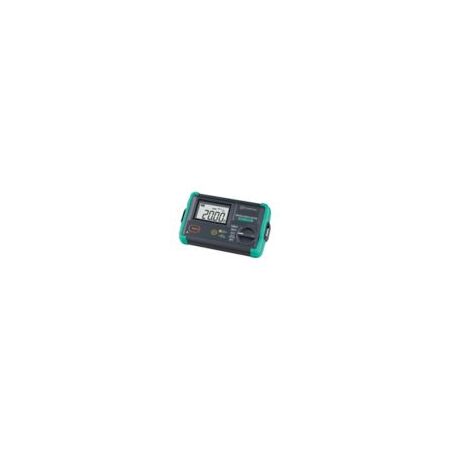

Digital Earth Tester | 20/200/2000 Ohms | IP67 Rated & LCD Display | Kyoritsu 4105DL by Eaton
The Kyoritsu 4105DL digital earth tester offers test ranges of 20/200/2000 ohms and an IP67 rating for dust and water resistance—ideal for electrical safety testing. Built for qualified electricians, it features an LCD display for clear readings and auto power off for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Earth Tester | 20/200/2000 Ohms | IP67 Rated & LCD Display | Kyoritsu 4105DL by Eaton
Brand: Eaton
SKU: 04105D029A
Alternatively Known As: Digital Earth Resistance Tester, Earth Ground Tester, Earth Resistance Meter
Technical Specifications
- Test Ranges: 20/200/2000 ohms
- Measurement Capabilities: Earth Resistance
- Test Meter Functions: Auto Power Off, Backlight
- Display Type: LCD
- Safety Category Rating: CATIII 150V, CATII 300V, CATIV 100V
- Earth Resistance Test Method: 2 Wire, 3 Wire
- Certifications: IEC 61010-2-030, IEC 61326-1, IEC 61326-2-2, IEC 61010-1, IEC 61010-031, IEC 61557-5, IEC 60529, IEC 61557-1
- Dimensions (H x L x W): 121mm x 188mm x 59mm
- Weight: 0.69 kg
Key Features
- IP67 rated for dust and water resistance
- Includes cable reel for ease of use
- LCD display for clear readings
- Auto power off and backlight functions
- Test ranges of 20/200/2000 ohms
- Supports 2 wire and 3 wire earth resistance test methods
- Safety category ratings: CATIII 150V, CATII 300V, CATIV 100V
Professional Installation Requirements
- Professional use recommended; testing should be performed by qualified electricians or technicians trained in earth resistance measurement.
Applications
- Electrical safety testing
- Earth resistance measurement in residential, commercial, and industrial electrical installations
- Maintenance and troubleshooting of grounding systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 design reduces need for frequent replacements
- Accurate testing helps ensure electrical safety and reduces energy losses
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Kyoritsu 4105DL digital earth tester by Eaton is available now for immediate purchase. Ideal for electrical safety testing and earth resistance measurement in various electrical installations.
