Digital Fire Hose Reel Flowmeter | 0-1200 Litres/Minute | Ultrasonic Accuracy | Brass Construction by Firebox

BRAND: Firebox
SKU: GI-DFHRFM1
$3,178.60 List price: $3,847.20
+ −
30 Days Return Delivery Options

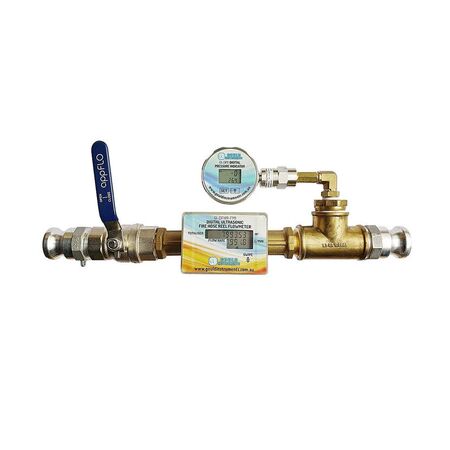

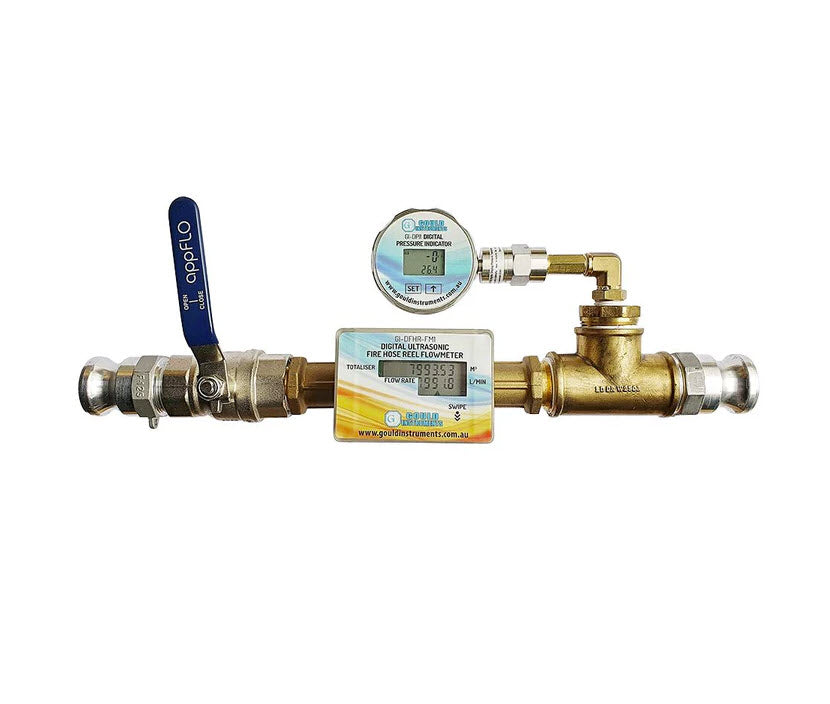

The Gould Digital Fire Hose Reel Flowmeter offers a flow range of 0 to 1200 litres/minute and ultrasonic accuracy—ideal for testing fire hose reels in various facilities. Built for fire safety professionals, it features a durable brass construction and is portable for easy field testing.

Product Name/Title: Digital Fire Hose Reel Flowmeter | 0-1200 Litres/Minute | Ultrasonic Accuracy | Brass Construction by Firebox

Brand: Firebox

SKU: GI-DFHRFM1

Alternatively Known As: Fire Hose Flow Meter, Fire Hose Reel Flow Meter, Digital Fire Hose Flowmeter, Ultrasonic Fire Hose Flowmeter

Technical Specifications
  • Flow Range: 0 to 1200 Litres/Minute
  • Resolution: 0.1 Litres/Minute
  • Flow Totaliser Accuracy: +/- 1-2%
  • Operating Temperature: 0 to 50ºC
  • Pressure Indicator Rating: 0 to 2500 kPa
  • Pressure Resolution: 1 kPa
  • Main Flow Body Material: Brass
  • Power Supply: Lithium Battery
  • Dimensions (H x L x W): 150mm x 400mm x 300mm
  • Weight: 3 kg
Key Features
  • Rugged and highly accurate ultrasonic flowmeter
  • Portable and simple to use
  • Suitable for testing all fire hose reels without removing nozzles
  • Range: 0 to 1200 Litres/Minute
  • Resolution: 0.1 Litres/Minute
  • Flow Totaliser in Litres with accuracy of +/- 1-2%
  • Operating temperature range: 0 to 50ºC
  • Pressure indicator rating: 0 to 2500 kPa
  • Brass main flow body construction
  • Powered by lithium battery with 12 month warranty
  • Pressure resolution: 1 kPa
  • Includes stainless steel flowmeter body, 2 1/2 inch ball valve, digital pressure indicator, operating instructions, calibration certificates, and impact-resistant carry case
Professional Installation Requirements
  • No professional installation required; portable and user-friendly for field testing by trained personnel.
Applications
  • Testing fire hose reels in residential, commercial, and industrial buildings
  • Flow measurement for fire safety equipment maintenance
  • Portable flow testing for fire protection systems
Standards & Compliance
  • Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
  • Enables accurate testing and maintenance of fire safety equipment, ensuring efficient water use during fire emergencies
  • Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information

12 month warranty on lithium battery; standard manufacturer warranty applies.

Available Now

The Gould Digital Fire Hose Reel Flowmeter is available for immediate purchase, ideal for fire safety testing and maintenance in various facilities.
