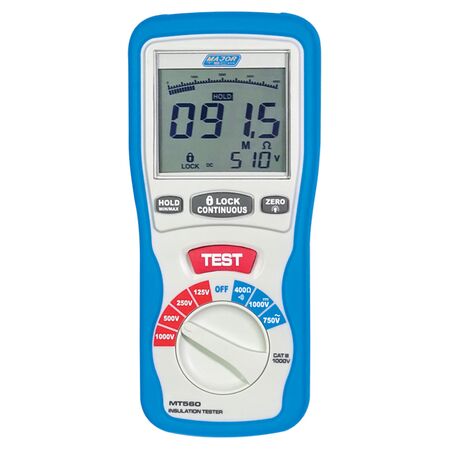

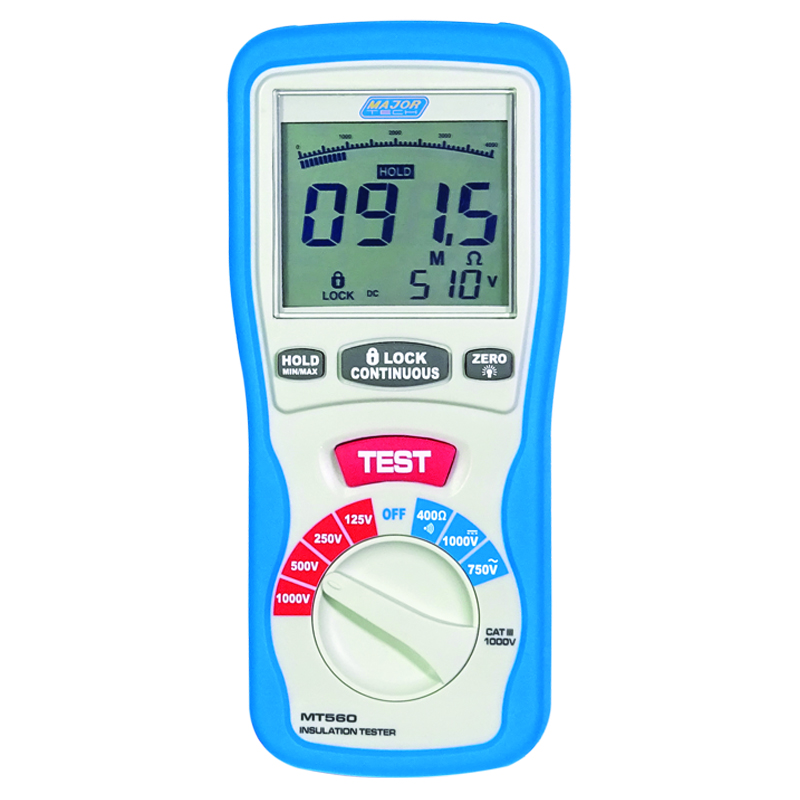

Digital Insulation Tester | 1V to 1000V AC Voltage Range | Large Dual Display & Continuity Buzzer | Majortech
Digital insulation tester with a 1V to 1000V AC voltage range and large dual display—ideal for electrical maintenance and safety verification. Built for qualified personnel, it features a continuity buzzer and four test voltage ranges for accurate insulation resistance testing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Insulation Tester | 1V to 1000V AC Voltage Range | Large Dual Display & Continuity Buzzer | Majortech
Brand: Majortech
SKU: MT560
Alternatively Known As: Insulation Resistance Tester, Digital Megohmmeter, Insulation Meter, Electrical Insulation Tester
Technical Specifications
- AC Voltage Range: 1V to 1000V, Resolution: 1V, Accuracy: ±(1.2% + 10 digits)
- Resistance Range: 0.01Ω to 400Ω, Resolution: 0.01Ω, Accuracy: ±(1.2% + 3 digits)
- Insulation Resistance 125V: 0.125MΩ to 4.000MΩ, Accuracy: ±(2.0% + 10 digits)
- Insulation Resistance 250V: 0.250MΩ to 40.00MΩ, Accuracy: ±(2.0% + 10 digits)
- Insulation Resistance 500V: 0.500MΩ to 400.0MΩ, Accuracy: ±(2.0% + 10 digits)
- Insulation Resistance 1000V: 1.000MΩ to 4000MΩ, Accuracy: ±(3.0% + 10 digits)
- Dimensions (H x L x W): 80mm x 40mm x 150mm
- Weight: 0.5 kg
Key Features
- Large dual display with bargraph for insulation resistance indication
- Four test voltage ranges: 125V, 250V, 500V, and 1000V
- Supplies more than 1mA current under each test range to feed capacitance load
- AC and DC voltage measurement with battery indication
- AC voltage presence indicated on LCD regardless of range except Off position
- Data hold function and bright white LED backlight
- Continuity buzzer for easy circuit testing
Professional Installation Requirements
- No professional installation required; however, use by qualified personnel is recommended for accurate testing and safety.
Applications
- Electrical insulation testing in industrial and specialist environments
- Verification of insulation resistance in electrical installations
- Maintenance and troubleshooting of electrical equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps ensure electrical safety and energy efficiency by detecting insulation faults early
- Reduces risk of electrical failures and associated environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT560 Digital Insulation Tester is available now for immediate purchase. Ideal for electrical maintenance, testing, and safety verification in industrial and specialist applications.
