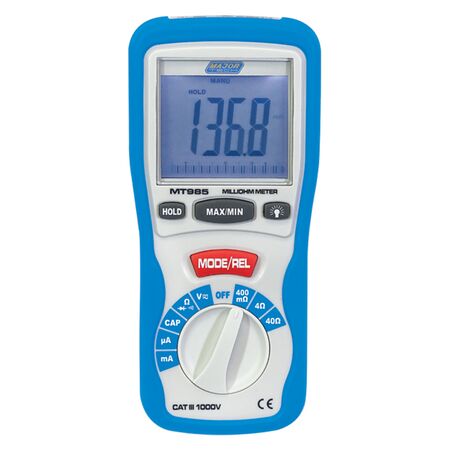

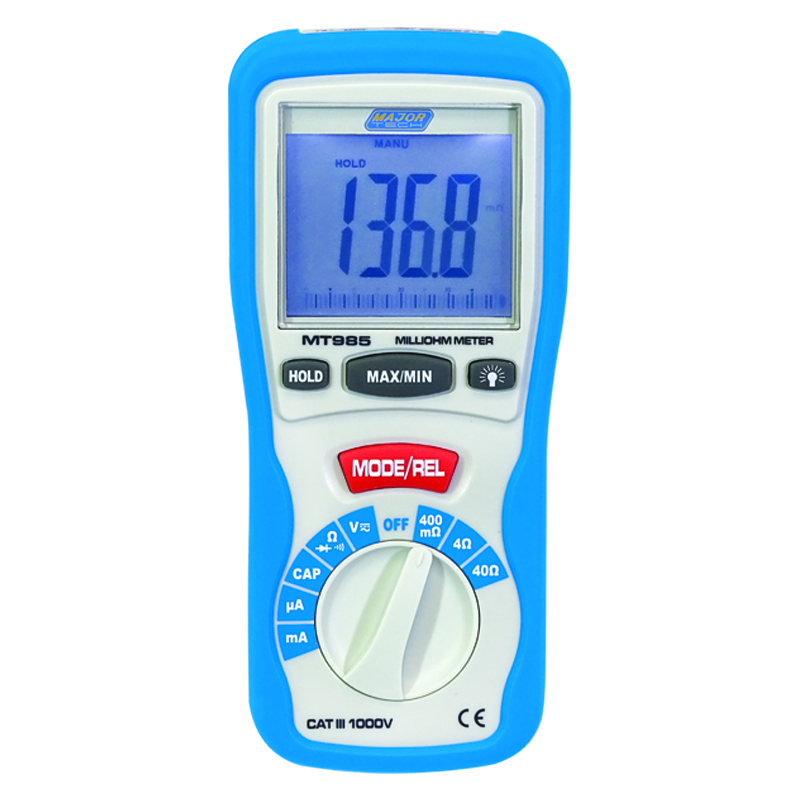

Digital Milliohm Meter | 0.1mΩ to 40Ω Range | 200mA Test Current | 4000 Count LCD by Majortech

BRAND: Major Tech

SKU: MT985

$308.50 List price: $396.90

+ −

30 Days Return Delivery Options

Digital milliohm meter with a measurement range of 0.1mΩ to 40Ω and a test current of 200mA—ideal for industrial electrical testing and low resistance measurements. Built for field use, featuring a large 4000 count LCD display with backlight for easy reading.

Description

Product Name/Title: Digital Milliohm Meter | 0.1mΩ to 40Ω Range | 200mA Test Current | 4000 Count LCD by Majortech

Brand: Majortech

SKU: MT985

Alternatively Known As: Milliohm Meter, Low Resistance Tester, Digital Milliohm Meter, MT985 Multimeter

Technical Specifications

DC Voltage Range: 0.1mV to 1000V, Resolution: 0.1mV, Accuracy: ±(1% + 5 digits)
AC Voltage Range: 0.1mV to 750V, Resolution: 0.1mV, Accuracy: ±(1.2% + 10 digits)
DC Current Range: 0.1μA to 400mA, Resolution: 0.1μA, Accuracy: ±(1.0% + 2 digits)
AC Current Range: 0.1μA to 400mA, Resolution: 0.1μA, Accuracy: ±(1.5% + 5 digits)
Resistance Range: 0.1Ω to 40MΩ, Resolution: 0.1Ω, Accuracy: ±(1.0% + 4 digits)
Capacitance Range: 1pF to 40mF, Resolution: 1pF, Accuracy: ±(5.0% + 20 digits)
Test Current for Milliohm: 200mA
Display: 4000 count LCD with bargraph and backlight
Dimensions (H x L x W): 80mm x 40mm x 150mm
Weight: 0.3 kg

Key Features

Measures low resistance from 400mΩ to 40Ω with 0.1mΩ resolution
Test current of 200mA for accurate milliohm measurements
Large high contrast 4000 count LCD display with bargraph and backlight
Multifunction: measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and diode test
Compact handheld design for portability and ease of use

Professional Installation Requirements

No professional installation required; handheld device suitable for field use by trained personnel.

Applications

Industrial electrical testing
Specialist low resistance measurements
Maintenance and troubleshooting in electrical and electronic systems

Standards & Compliance

Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Portable design reduces need for multiple instruments, lowering material waste
Energy-efficient operation extends battery life and reduces power consumption

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Majortech Digital Milliohm Meter MT985 is available now for immediate purchase. Ideal for industrial and specialist electrical testing applications.
