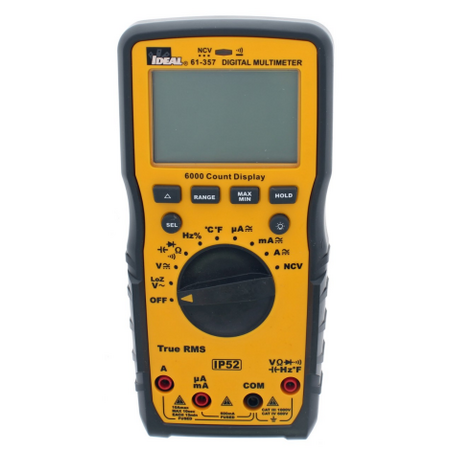

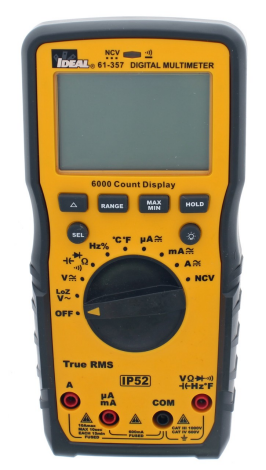

Digital Multimeter 1000V Auto Range | True RMS & LoZ | IP52 Rated by Ideal Electrical
This digital multimeter offers up to 1000V AC/DC measurement with true RMS accuracy and low impedance (LoZ) for reliable readings. Ideal for electrical testing and troubleshooting, it features a backlit display, non-contact voltage detection, and a durable design for professional use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multimeter 1000V Auto Range w/LoZ
Brand: Ideal Electrical
SKU: IDL61-357
Alternatively Known As: Digital Multimeter 1000V, Auto Ranging Multimeter, TRMS Multimeter, LoZ Multimeter, Electrical Tester
Technical Specifications
- Voltage Measurement: Up to 1000V AC/DC
- Current Measurement: Up to 10A AC/DC
- Low Impedance (LoZ) AC Voltage to reduce false readings
- Frequency, resistance up to 60MΩ, continuity, capacitance, diode testing
- Temperature measurement with K-Type thermocouple in °F and °C

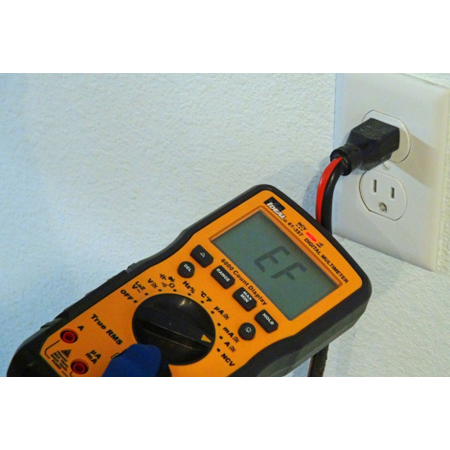

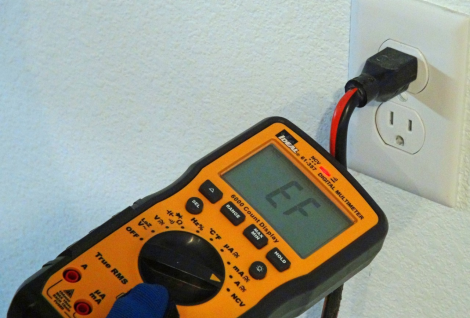

- Non-contact voltage detection from 40V to 600V

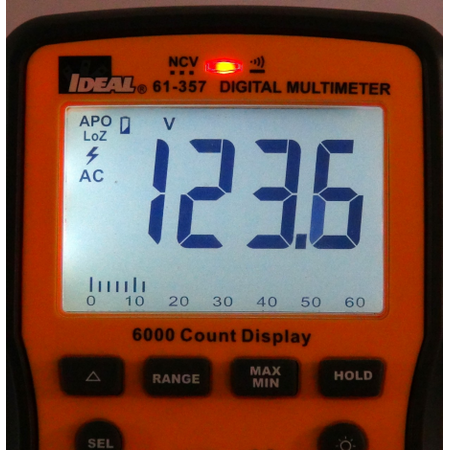

- Display: Digital readout with analog bar graph and backlight
- IP Rating: IP52
- Drop Protection: 2 meters
- Battery: 3 x 1.5V AAA
- Dimensions (H x L x W): 160mm x 40mm x 80mm
- Weight: 0.3 kg
Key Features
- True RMS AC voltage and current measurements for accuracy on non-linear signals
- Measures AC/DC current, AC/DC voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, and temperature
- Non-contact voltage sensor detects voltage between 40V and 600V

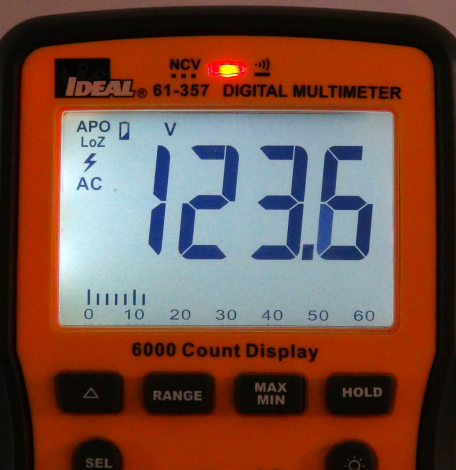

- Combined digital readout and analog bar graph display with backlight
- Audible tones and red LED alerts for voltage above 30 volts, continuity, and NCV detection

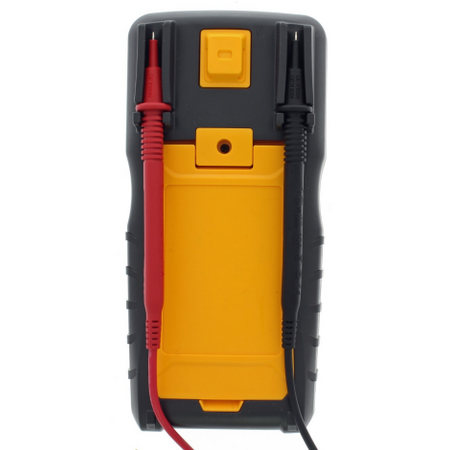

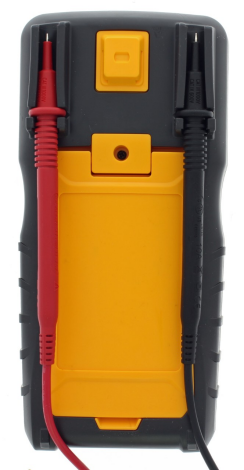

- Built-in probe tip holder and hanging strap clip for safer, easier measurement
- Industrial-grade over-molding for enhanced grip and 2 m drop protection

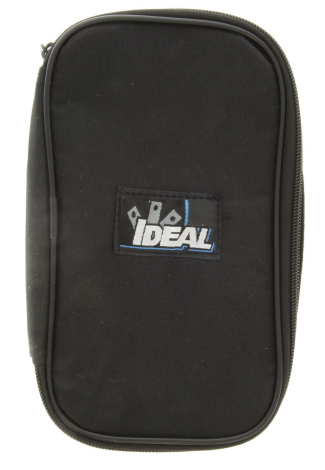

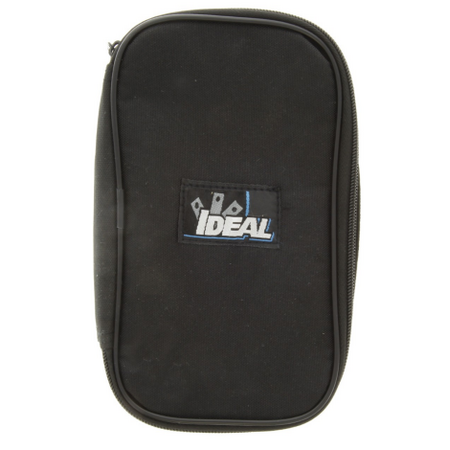

- Includes soft case, test leads, batteries, and K-Type thermocouple
- Auto power off, data hold, MIN/MAX, relative, and selectable range functions
Professional Installation Requirements
- Professional use recommended; installation and testing should be performed by qualified electricians to ensure safety and compliance.
Applications
- Electrical testing and troubleshooting
- Industrial and commercial electrical maintenance
- HVAC system diagnostics
- Professional electrical installations and repairs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Auto power off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Limited 2 year warranty against manufacturing defects.
Available Now
The Ideal Electrical Multimeter 1000V Auto Range with LoZ is available now for immediate purchase. Ideal for professional electrical testing and maintenance applications.
