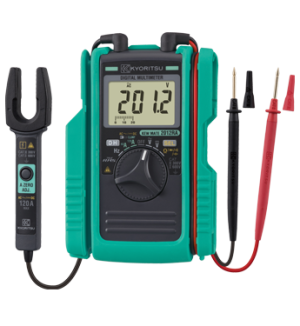

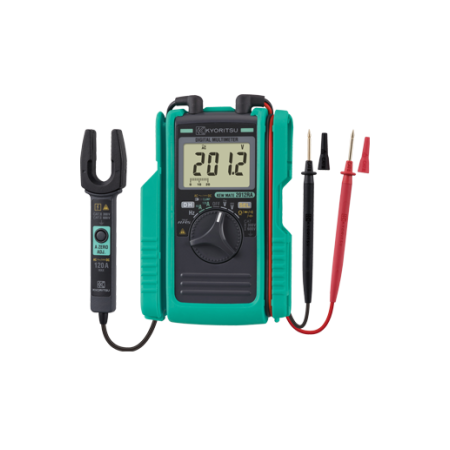

Digital Multimeter with AC/DC Clamp Sensor | 120A Current Measurement | 600V Voltage Measurement | True RMS | by Rapid Tech
The Digital Multimeter with AC/DC Clamp Sensor is perfect for electrical testing, measuring AC and DC current up to 120A and voltage up to 600V. Designed for both residential and industrial applications, it features True RMS for accurate readings and an auto power save function, making it ideal for electricians and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter with AC/DC Clamp Sensor | 120A Current Measurement | 600V Voltage Measurement | True RMS | by Rapid Tech
Brand: Rapid Tech
SKU: 2012RA
Alternatively Known As: Clamp Meter, AC/DC Clamp Meter, Digital Clamp Multimeter, Current Clamp Meter, Electrical Clamp Meter
Technical Specifications
- AC/DC current measurement up to 120A
- Voltage measurement up to 600V AC/DC
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 40μF
- Continuity buzzer with audible warning below 35Ω
- True RMS for AC current and voltage
- Auto power save function
- Open jaw clamp sensor for tight spaces
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- Measures AC & DC current up to 120A with unique open jaw technology
- Measures AC and DC voltage up to 600V and resistance up to 60MΩ
- Auto-power save function
- Diode test and capacitance measurement up to 40μF
- Continuity buzzer with audible warning below 35Ω
- True RMS readings for accurate AC current and voltage measurement
- Enhanced cable durability with rubber protection
- Holster holds test probe and includes test lead cap to prevent short circuits
Professional Installation Requirements
- Professional installation is not required; however, use by qualified electricians or trained technicians is recommended for safety and accuracy.
Applications
- Electrical and electronic testing in residential, commercial, and industrial settings
- Troubleshooting electrical and electronic installations
- Measuring output of solar panels in photovoltaic installations
- Testing and servicing DC current devices such as cars, electric forklifts, small electric vehicles, DC motor controllers, golf cars, trolleys, UPS systems, electric scooters and bikes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps optimize electrical system performance reducing energy waste
- Supports maintenance of renewable energy systems like solar panels
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Rapid Tech Digital Multimeter with AC/DC Clamp Sensor is available now for immediate purchase. Ideal for electrical testing in residential, commercial, industrial, and renewable energy applications.
