Digital Multimeter True RMS | 0-4000mF Capacitance | 600V AC/DC | High Resolution by Eaton

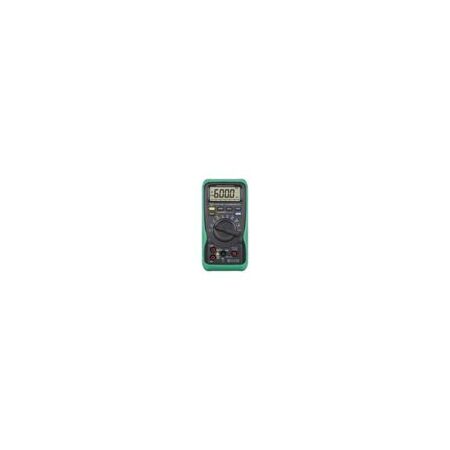

The Kyoritsu 1012 digital multimeter features True RMS detection for accurate AC measurements, a capacitance range up to 4000mF, and high-resolution voltage measurement at 0.001 V. Ideal for electrical testing and troubleshooting in industrial, commercial, and educational settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter True RMS | 0-4000mF Capacitance | 600V AC/DC | High Resolution by Eaton
Brand: Eaton
SKU: 010120029A
Alternatively Known As: Digital Multimeter, True RMS Multimeter, Electrical Tester, Kyoritsu 1012 Meter
Technical Specifications
- Capacitance range: 0 - 4000mF
- Display type: LCD
- Detection Method: True RMS
- Voltage measurement resolution: 0.001 V
- Current measurement resolution: 1 mA
- Resistance measurement max: 60 mΩ
- AC voltage measurement max: 600 V
- DC voltage measurement max: 600 V
- AC current measurement max: 10 A
- DC current measurement max: 10 A
- Measurement capabilities: Diode Test, Capacitance Test, Frequency Test, Continuity Buzzer, Duty Cycle Ratio
- Test meter functions: Auto Power Off, Bar Graph Display, Relative, Max/Min
- Safety category rating: CAT III 300V, CAT II 600V
- Certifications: IEC 61010-1, IEC 61326
- Dimensions (H x L x W): 161mm x 82mm x 50mm
- Weight: 0.28 kg
Key Features
- True RMS detection method for accurate AC measurements
- Capacitance range up to 4000mF
- High resolution voltage measurement at 0.001 V
- Current measurement resolution of 1 mA
- Resistance measurement up to 60 mΩ
- AC/DC voltage measurement max 600 V
- AC/DC current measurement max 10 A
- Multiple test functions including diode test, capacitance test, frequency test, continuity buzzer, duty cycle ratio
- Auto power off and bar graph display
- Relative, max/min measurement functions
- Safety category rating CAT III 300V and CAT II 600V
Professional Installation Requirements
- Professional use recommended; installation and testing should be performed by qualified electricians or technicians trained in electrical safety standards.
Applications
- Electrical testing and troubleshooting
- Industrial and commercial electrical maintenance
- HVAC system diagnostics
- Automotive electrical system testing
- Educational and training purposes in electrical engineering
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces battery consumption
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 1012 digital multimeter True RMS by Eaton is available now for immediate purchase. Ideal for electrical testing in industrial, commercial, and educational applications.
