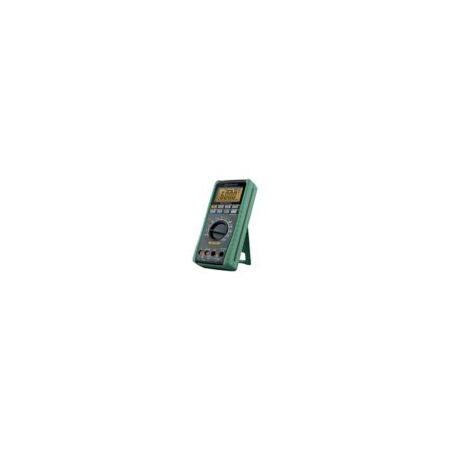

Digital Multimeter TrueRMS | 1000V AC/DC | USB Data Logging & Dual Display | Kyoritsu 1052 by Eaton
Digital multimeter with True RMS measurement and 1000V AC/DC capability—ideal for electrical testing and troubleshooting. Built for professionals, it features USB data logging, dual display, and multiple test functions for accurate diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter TrueRMS | 1000V AC/DC | USB Data Logging & Dual Display | Kyoritsu 1052 by Eaton
Brand: Eaton
SKU: 010520029C
Alternatively Known As: Digital Multimeter, True RMS Multimeter, Data Logging Multimeter, Kyoritsu 1052 DMM
Technical Specifications
- Capacitance range: 1000mF
- Display type: LCD
- Input frequency range: 10 Hz to 99.99 kHz
- Operating temperature range: -10 °C to 55 °C
- Current measurement resolution: 0.1 mA
- Maximum resistance measurement: 60 mΩ
- Communication interface: USB
- Maximum AC/DC voltage measurement: 1000 V
- Maximum AC/DC current measurement: 10 A
- Measurement capabilities: Continuity buzzer, decibel (dB), capacitance test, diode test, frequency test, temperature measurement
- Test meter functions: Dual display, auto power off, data hold, relative measurement, logging, average, backlight, peak hold, bar graph display, max/min
- Safety category rating: CATIII 1000V, CATIV 600V
- Recording mode: Normal capture
- Dimensions (H x L x W): 192mm x 90mm x 49mm
- Weight: 0.56 kg
Key Features
- True RMS measurement for accurate AC readings
- CATIII 1000V and CATIV 600V safety rating for high voltage environments
- Dual display with backlight and bar graph for easy reading
- Data logging with USB communication for recording and analysis
- Multiple test functions including continuity buzzer, diode test, capacitance, frequency, and temperature measurement
- Auto power off, data hold, relative measurement, peak hold, max/min recording modes
Professional Installation Requirements
- No professional installation required; recommended for use by qualified electrical professionals for safety and accuracy.
Applications
- Electrical testing and troubleshooting in industrial and commercial environments
- Measurement of AC/DC voltage and current up to 1000V and 10A
- Capacitance, frequency, temperature, and resistance testing
- Data logging and analysis for maintenance and diagnostics
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise electrical measurements to improve energy efficiency and reduce electrical faults
- Data logging helps in predictive maintenance, reducing waste and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 1052 digital multimeter is available now for immediate purchase. Ideal for electrical testing, maintenance, and diagnostics in industrial and commercial settings.
