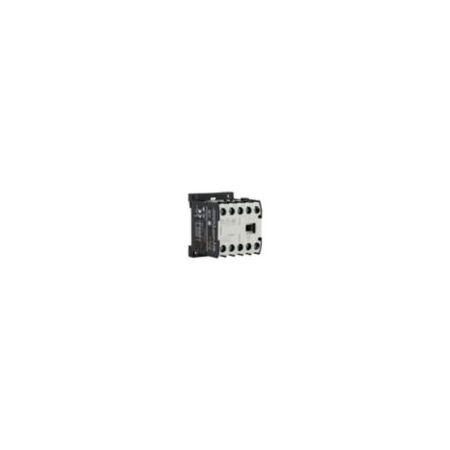

DILER-40 Contactor Relay | 240V AC | 10A Current | 4 N/O Contacts | Eaton
DILER-40 contactor relay with 240V AC rating and 10A operational current—ideal for industrial control systems and automation equipment. Built for reliability with a mechanical lifespan of 10 million operations and designed for easy DIN-rail or screw mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DILER-40 Contactor Relay | 240V AC | 10A Current | 4 N/O Contacts | Eaton
Brand: Eaton
SKU: Y7-10478
Alternatively Known As: DILER-40 Contactor Relay, Eaton DILER Mini-Contactor, 240V AC Contactor Relay, Eaton Moeller DILER Relay
Technical Specifications
- Rated operational voltage (Ue): up to 600 V AC
- Rated operational current (Ie): 10 A
- Number of normally open contacts: 4
- Mechanical lifespan: 10,000,000 operations
- Operating frequency: 9000 operations per hour
- Overvoltage category: III
- Pollution degree: 3
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 8 g to 10 g depending on contact type
- Ambient operating temperature: -25 °C to 50 °C
- Mounting method: DIN-rail or screw
- Terminal capacity (flexible with ferrule): 1 x (0.75 - 1.5) mm², 2 x (0.75 - 1.5) mm²
- Terminal capacity (solid): 2 x (0.75 - 2.5) mm², 1 x (0.75 - 2.5) mm²
- Tightening torque: 1.2 Nm
- Power consumption pick-up: 25 VA at 50 Hz
- Duty factor: 100%
- Dimensions (H x L x W): 58mm x 52mm x 45mm
- Weight: 0.17 kg
Key Features
- 4 normally open (N/O) contacts
- Positive operating contacts to EN 60947-5-1 appendix L
- Interlocked opposing contacts
- DIN-rail or screw mounting
- Rated operational voltage up to 600 V AC
- Rated operational current up to 10 A
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact from front (EN 50274)
- Shock resistance up to 10 g
- Operating temperature range from -25 °C to 50 °C
- Rated impulse withstand voltage of 6000 V AC
- Power consumption pick-up 25 VA at 50 Hz
Professional Installation Requirements
- Installation by a qualified electrician or professional panel builder is required to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications requiring contactor relays
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient coil operation minimizes power consumption
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILER-40 Contactor Relay 240V 50Hz is available for immediate purchase, ideal for industrial and automation control applications.
