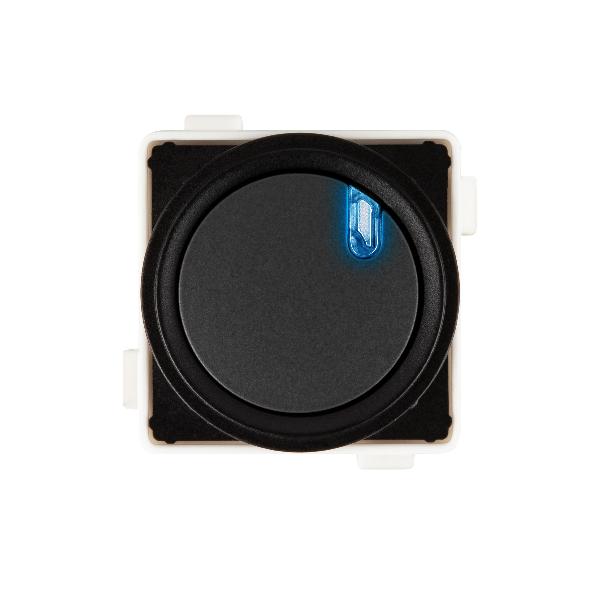

Dimmer Mechanism Push Button 3-Wire 16A | Programmable LED Indicator | Soft-Start Mode | Matt Black | @EA of 1 | by Legrand
The Dimmer Mechanism Push Button 3-Wire 16A is perfect for controlling dimmable LEDs, incandescent, and halogen lights. With a programmable LED indicator and soft-start mode, it enhances energy efficiency and extends bulb life. Ideal for both residential and commercial lighting applications, this dimmer also features a memory function for your preferred light levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dimmer Mechanism Push Button 3-Wire 16A | Programmable LED Indicator | Soft-Start Mode | Matt Black | @EA of 1 | by Legrand
Brand: Legrand
SKU: EM400A3PMB
Alternatively Known As: Push Button Dimmer Switch, 3-Wire Dimmer Mechanism, LED Dimmer Switch, Matt Black Dimmer
Technical Specifications
- Rated Load: 350VA
- Voltage: 350V a.c.
- Wiring: 3-wire dimmer
- LED Indicator: Programmable red/blue LED with configurable modes
- Compatibility: Dimmable LEDs, incandescent, halogen, dimmable compact fluorescents
- Protection: Short circuit protection
- Memory: Dimming level memory function
- Additional Features: KickStart mode, programmable soft-start, max/min light levels
- Standards Compliance: AS/NZS 3100
- Dimensions (H x L x W): 83mm x 162mm x 126mm
- Weight: 0.15 kg
Key Features
- Compatible with dimmable LEDs, incandescent, halogen, and dimmable compact fluorescents
- 350VA, 3-wire dimmer mechanism
- Multi-way dimming option with EM800SLAVEWE
- Programmable LED indicator (Blue or Red) with configurable modes
- Programmable soft-start mode and adjustable max/min light levels
- Dimming level memory function
- Short circuit protection
- KickStart mode for modern light sources
- Program parameters stored in non-volatile memory
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Residential lighting control for dimmable LEDs, incandescent, halogen, and compact fluorescents
- Commercial lighting systems requiring multi-way dimming
- Suitable for modern light sources with soft-start and memory functions
Standards & Compliance
- Complies with AS/NZS 3100 - Electrical Equipment Safety
Environmental Benefits
- Supports energy saving by enabling dimming of LED and other energy-efficient light sources
- Soft-start mode reduces inrush current, extending bulb life and reducing energy waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Excel Life 3-wire 16A push button dimmer mechanism in matt black is available for immediate purchase. Ideal for residential and commercial lighting control applications.
