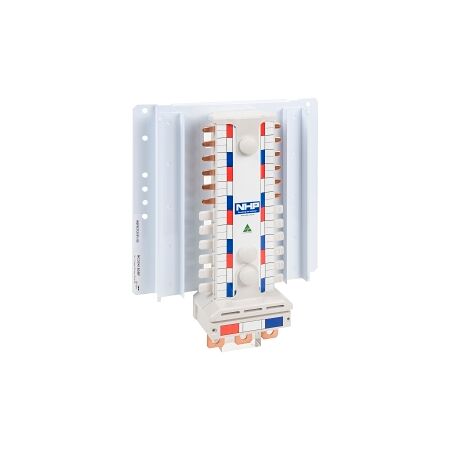

NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 3Pole Bottom Feed

DIN Busbar Chassis 250A 24 Way | 3-Phase Input | Encapsulated Housing by NHP

BRAND: NHP

SKU: NC224183BF

$526.10 List price: $698.50

+ −

30 Days Return Delivery Options

DIN busbar chassis with 250A rated current and 24 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated housing and IP20 protection, suitable for indoor use.

Description
Attachments

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 3Pole Bottom Feed

Brand: NHP

SKU: NC224183BF

Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar System

Technical Specifications

Rated Current: 250 A
Number of Poles: 24
Number of Phases Input: 3-phase
Nominal Voltage: 415 V
Short Time Withstand Current (1 sec): 10 kA
Short Time Withstand Current (0.3 sec): 20 kA
Short Time Withstand Current (0.1 sec): 25 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Degree of Protection: IP20
Dimensions (H x L x W): 242mm x 300mm x 100mm
Weight: 5 kg

Key Features

250A rated current for high power applications.
24 poles with 3-phase input for versatile configurations.
Encapsulated material housing for enhanced durability.
IP20 degree of protection suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in large buildings
General: Suitable for any application requiring robust busbar systems

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Durable construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

NC224183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf (NC224183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf, 245 Kb) [Download]
