DIN Busbar Chassis 250A 36 Way | 2Pole Bottom Feed | Red Black by NHP
DIN busbar chassis with 250A rated current and 36 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and distribution boards.
Sign in
Please login to continue to your account.

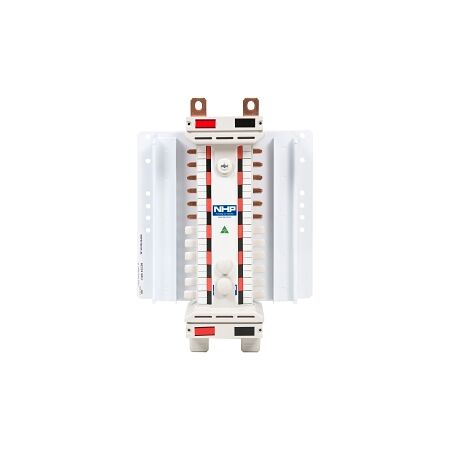

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Bottom Feed Red Black
Brand: NHP
SKU: NC236182BF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, NC Busbar Chassis
- Rated Current: 250 A
- Number of Poles: 36
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 350mm x 300mm x 200mm
- Weight: 5 kg
- 250A rated current with 36 poles for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for electrical installations.
- Durable construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Bottom Feed Red Black is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
