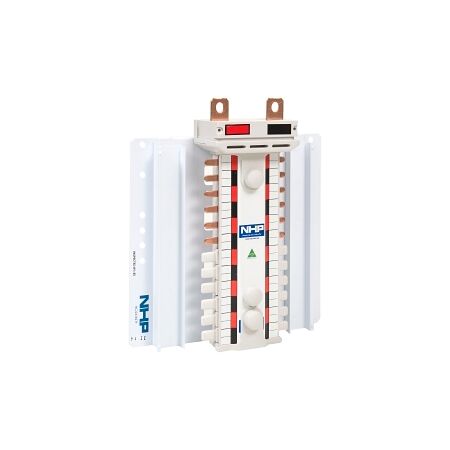

DIN Busbar Chassis 250A 36 Way | 2Pole Top Feed | Red Black by NHP

BRAND: NHP
SKU: NC236182TF
$672.60 List price: $893.10
+
DIN busbar chassis with 250A rated current and 36 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Top Feed Red Black

Brand: NHP

SKU: NC236182TF

Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 36
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 350mm x 500mm x 200mm
  • Weight: 5 kg
Key Features
  • Rated current of 250A with 36 poles for efficient power distribution.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power distribution, reducing energy loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Top Feed Red Black is available now for immediate purchase. Ideal for industrial and electrical applications.

NC236182TF-AU-Chassis-NC-DINT-250A-2-Pole-Top-Feed-Datasheet.pdf (NC236182TF-AU-Chassis-NC-DINT-250A-2-Pole-Top-Feed-Datasheet.pdf, 247 Kb) [Download]
