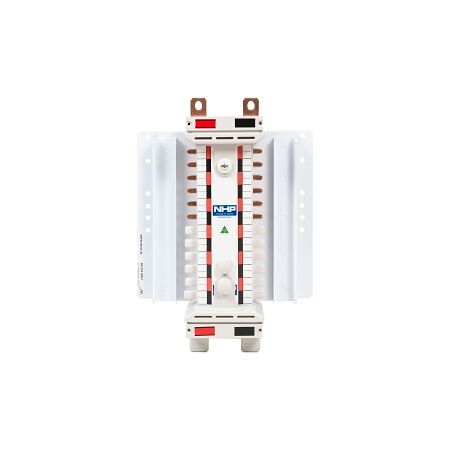

DIN Busbar Chassis 250A 48 Way | 2Pole Bottom Feed | Red Black by NHP

BRAND: NHP
SKU: NC248182BF
$820.10 List price: $1,089.00
+
DIN busbar chassis with 250A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and distribution boards.

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 2Pole Bottom Feed Red Black

Brand: NHP

SKU: NC248182BF

Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 48
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 458mm x 500mm x 100mm
  • Weight: 5 kg
Key Features
  • 250A rated current with 48 poles for extensive connectivity.
  • Encapsulated material housing for enhanced durability.
  • IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 2Pole Bottom Feed Red Black is available now for immediate purchase. Ideal for industrial and electrical applications.

Non-Returnable & Non-Cancellable

NC248182BF-AU-Chassis-NC-DINT-250A-2-Pole-Bottom-Feed-Datasheet.pdf (NC248182BF-AU-Chassis-NC-DINT-250A-2-Pole-Bottom-Feed-Datasheet.pdf, 235 Kb) [Download]
