DIN Busbar Chassis 250A 48 Way | 2Pole Top Feed | Red Black by NHP
DIN busbar chassis with 250A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

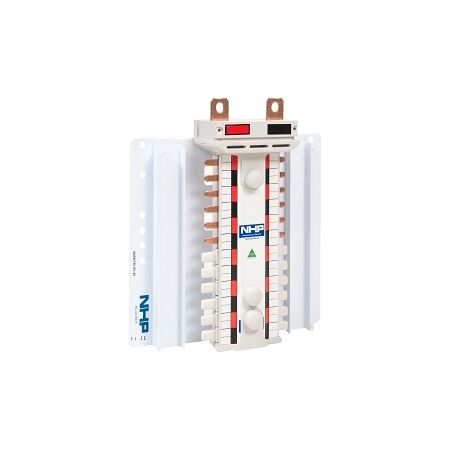

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 2Pole Top Feed Red Black
Brand: NHP
SKU: NC248182TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, NC Busbar Chassis
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 500mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current with 48 poles for extensive connectivity.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 2Pole Top Feed Red Black is available now for immediate purchase. Ideal for industrial power distribution applications.
