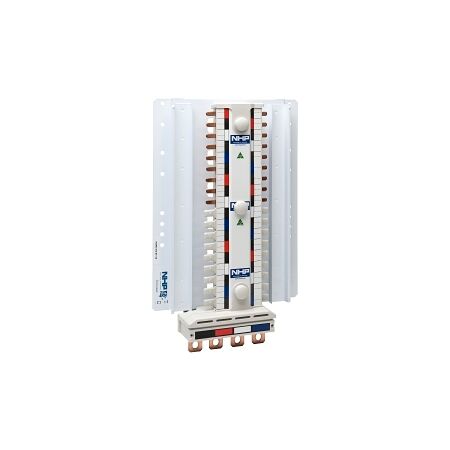

DIN Busbar Chassis 250A 60 Way | 4 Pole Bottom Feed | IP20 Protection by NHP
DIN busbar chassis with 250A rated current and 60 poles—ideal for industrial power distribution. Built for extensive connectivity, with encapsulated material housing and IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Bottom Feed RNWNBN
Brand: NHP
SKU: NC260184BF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 60
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 566mm x 82mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current with 60 poles for extensive connectivity.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Bottom Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
Non-Returnable & Non-Cancellable
