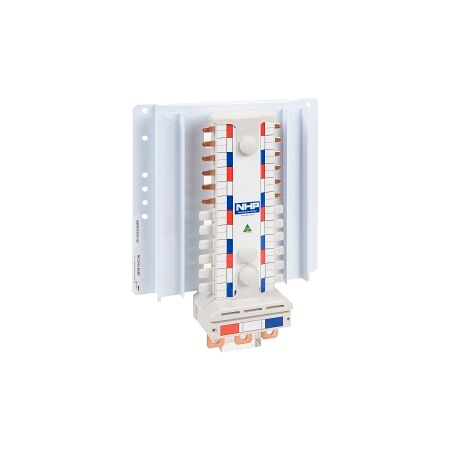

DIN Busbar Chassis 250A 78 Way 3-Pole Bottom Feed NHP

BRAND: NHP
SKU: NC278183BF
$1,540.50 List price: $1,919.70
+ −
30 Days Return Electricians Unlock Trade Access
DIN busbar chassis with 250A rated current and 78 poles—ideal for industrial power distribution. Built for commercial settings
Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 78
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 728mm x 82mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current for robust power handling.
  • 78 poles with 18mm pitch for flexible configuration.
  • 3-phase input for efficient power distribution.
  • Encapsulated material housing for durability.
  • IP20 protection rating for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and control panels
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power distribution, reducing energy loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 78 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and electrical applications.

Non-Returnable & Non-Cancellable

NC278183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf (NC278183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf, 245 Kb) [Download]
