DIN Busbar Chassis 250A | 84 Way 3-Pole | Bottom Feed by NHP
DIN busbar chassis with 250A rated current and 84 poles—ideal for industrial and commercial power distribution. Built for balanced power distribution, with encapsulated material housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

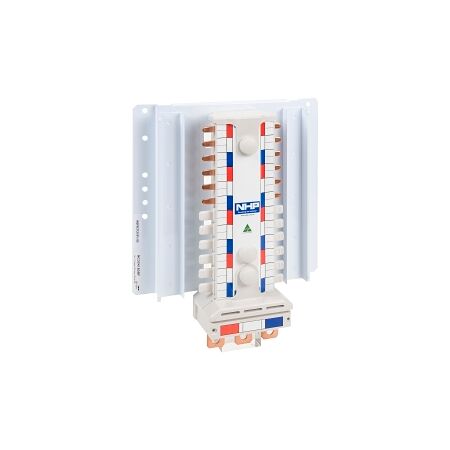

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 84 Way 3Pole Bottom Feed
Brand: NHP
SKU: NC284183BF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 84
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Dimensions (H x L x W): 782mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current for high power applications.
- 84 poles for extensive circuit management.
- 3-phase input for balanced power distribution.
- Encapsulated material housing for durability.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 84 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
