DIN Rail Fibre Optic Module | 12 SC or 24 LC Ports | Compact Design | Easy Installation by Cabac
DIN rail fibre optic module with options for 12 SC or 24 LC ports—ideal for network installations. Built for efficient data transmission, with a compact design for easy integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIN Rail Fibre Optic Module | 12 SC or 24 LC Ports | Compact Design | Easy Installation by FOBOT
Brand: Cabac
SKU: WB-12/24MOD-DIN
Alternatively Known As: Fibre Optic Breakout Box, DIN Rail Fibre Optic Enclosure, Mini DIN Rail FOBOT, Fibre Optic Splice Box
Technical Specifications
- Maximum Fibre Count (Front Panel): 12 SC and LC
- Incoming Cable Ports: 1 top and 1 bottom
- Material: Powder coated 1.6mm zinc annealed steel
- Colour: Dark grey

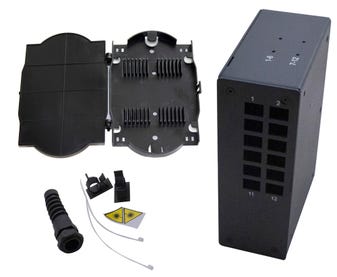

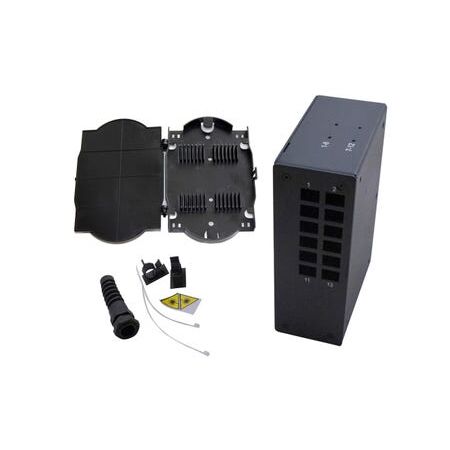

- Includes cable gland, central strain relief post, DIN rail mounting clip, laser badge, fibre clips, and through adapters
- Dimensions (H x L x W): 155mm x 110mm x 55.5mm
- Weight: 0.67 kg
Key Features
- Small size making it very versatile
- Mounts to a DIN rail strip
- Accommodates up to 12 x SC or LC duplex adapters
- Ideal for housing pre-terminated loose tube and tight buffered cables
- Allows for fusion splicing of up to 24 fibres
- Several cable entry points to suit installation environment
- MPO/MTP compatible
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper fusion splicing and secure mounting on DIN rail.
Applications
- Process automation and control
- Intelligent transport system
- Rail signalling and control networks
- Power systems and control
- Pre-terminated cabling solutions
Standards & Compliance
- Complies with AS/NZS 3080 – Telecommunications installations – Generic cabling for customer premises (related to fibre optic cabling and connectivity)
Environmental Benefits
- Compact design reduces material usage and waste
- Supports pre-terminated cables reducing onsite splicing and installation time
- Durable powder coated steel housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac DIN Rail FOBOT 12 Fibre SC SPX or 24 Fibre LC DPX is available for immediate purchase, ideal for industrial and transport network fibre optic installations.
