DOL-0612G15M075KM0 | Connectors and cables

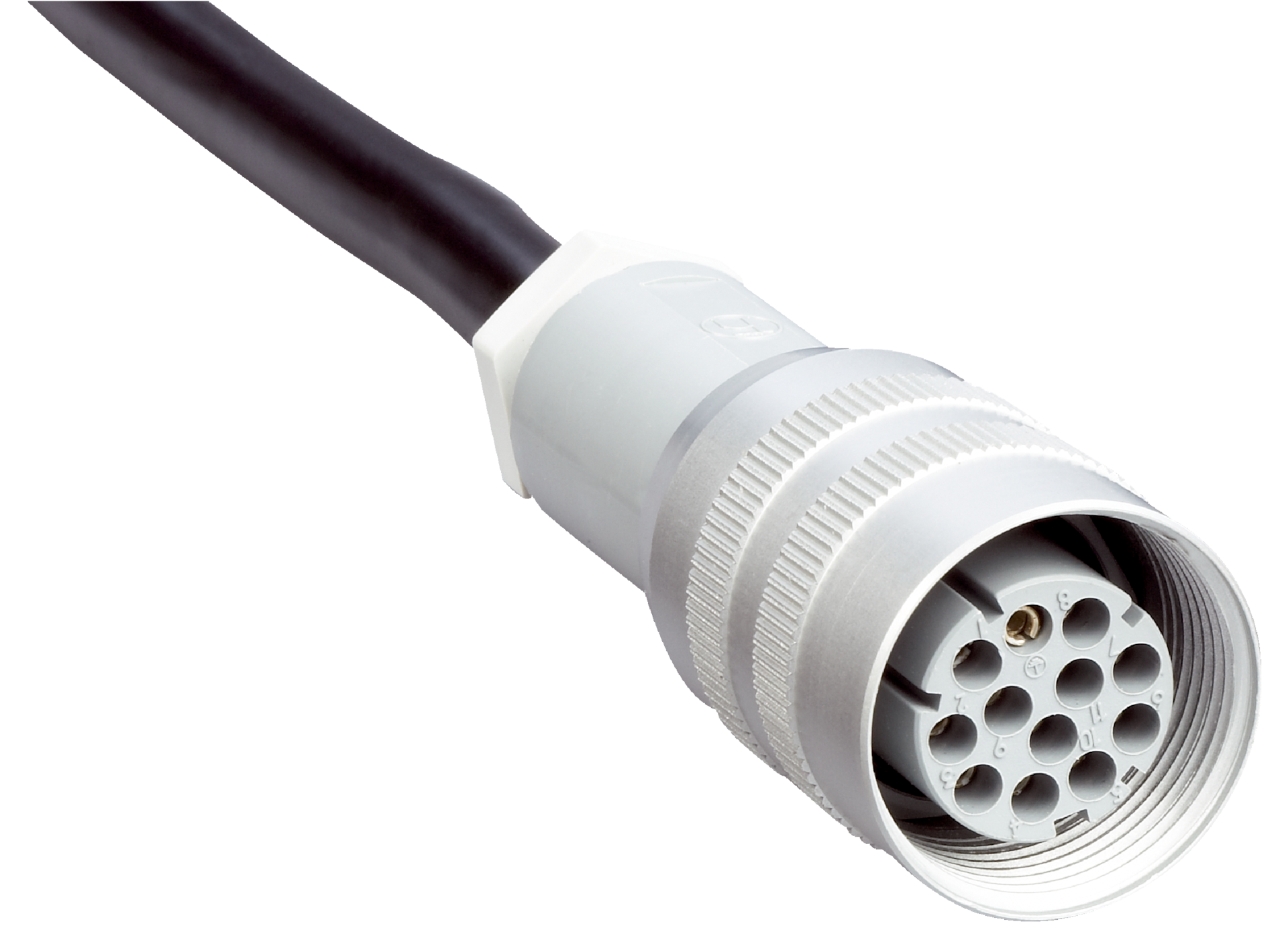

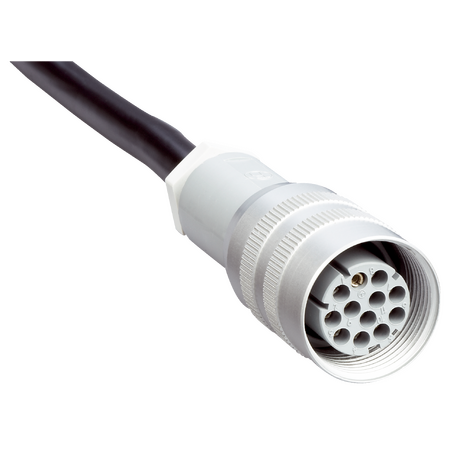

The SICK DOL-0612G15M075KM0 is a 15m sensor/actuator cable featuring a female M26 12-pin connector and flying leads, designed for reliable industrial automation connections with IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-0612G15M075KM0 | Connectors and cables
Brand: SICK
SKU: 2022548
Alternatively Known As: Sensor cable, actuator cable, M26 connector cable, industrial automation cable
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: PET
- Connector color: Gray, silver
- Cable length: 15 m
- Cable wires: 12-wire
- Jacket material: PVC
- Jacket color: Black
- Cable diameter: 10 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 (EN 60529)
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –40 °C to +90 °C
- Dimensions (H x L x W): 10mm x 15000mm x 10mm
- Weight: 0.5 kg
Key Features
- Female M26, 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Durable PET connector material with gray and silver color
- 15 meter long, 12-wire PVC cable with black jacket
- Unshielded cable with 0.75 mm² conductor cross section
- IP65 rated enclosure for dust and water protection
- Operating temperature range suitable for flexible and stationary use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Machine building and factory automation
- Signal transmission in control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- PVC jacket provides protection extending cable lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-0612G15M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
