DOL-0803-L10MRN | Connectors and cables

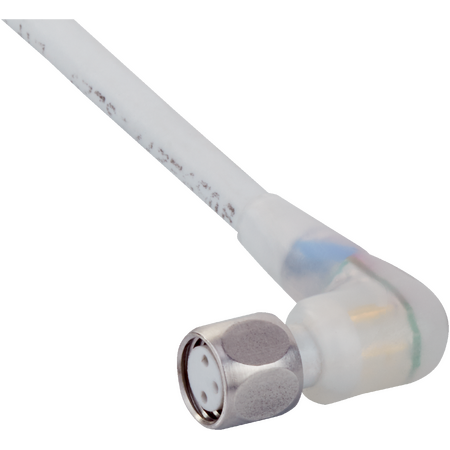

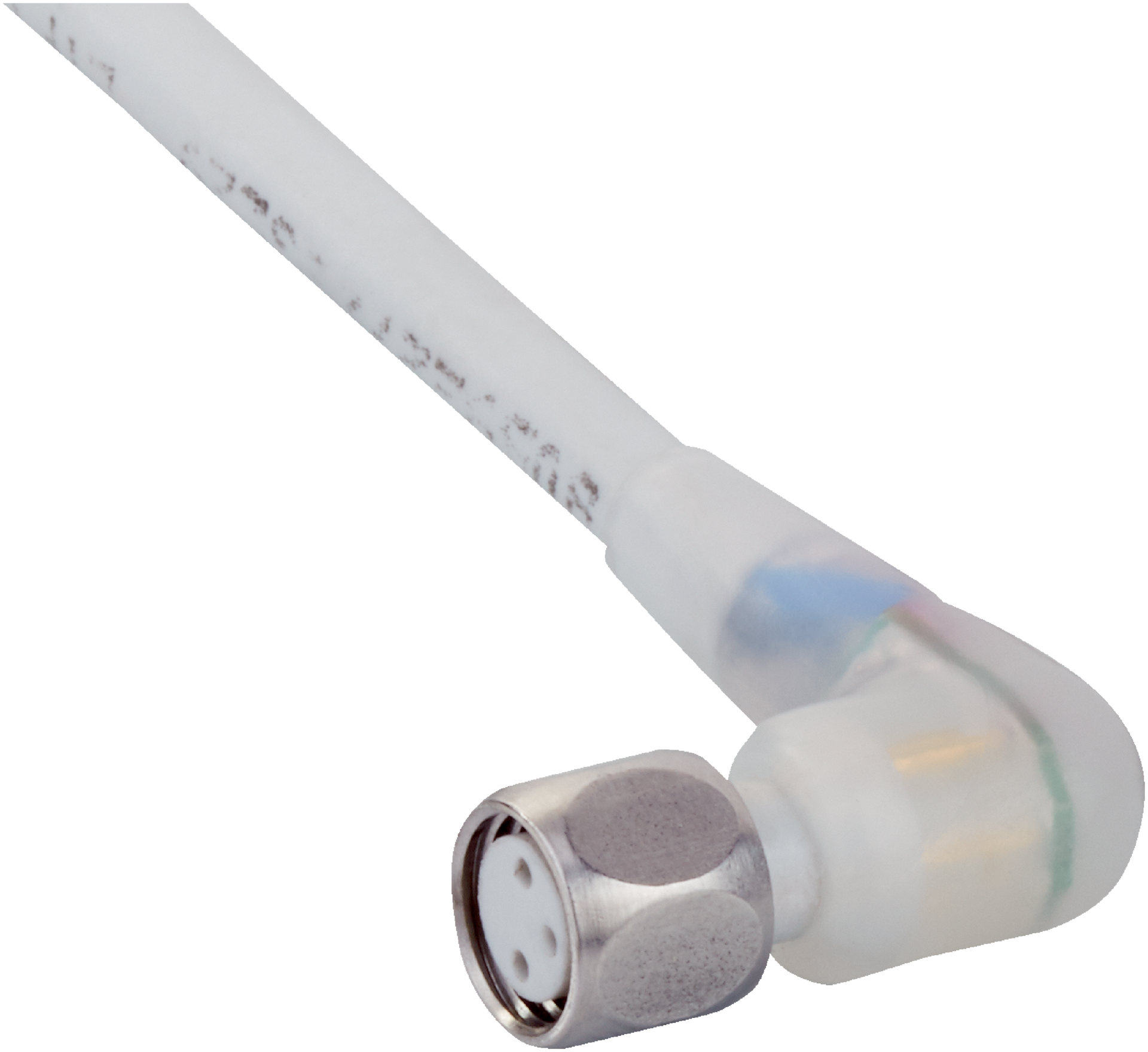

The SICK DOL-0803-L10MRN is a durable sensor/actuator cable featuring a female M8 3-pin angled connector and 10 m PP cable, designed for hygienic and washdown zones with IP67/IP69K protection and LED indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-0803-L10MRN | Connectors and cables
Brand: SICK
SKU: 6058789
Alternatively Known As: M8 Sensor Cable, Actuator Cable with M8 Connector, IP67 Sensor Cable, Washdown Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 4-wire, unshielded, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: -25 °C to +105 °C (flexible), -40 °C to +105 °C (stationary)
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per 1 m
- Enclosure rating: IP67 / IP69K
- LED function indicator included
- Dimensions (H x L x W): 15mm x 10000mm x 9mm
- Weight: 0.2 kg
Key Features
- Female connector, M8, 3-pin, angled
- 10 m, 4-wire PP cable with gray jacket
- Locking nut made of stainless steel (V4A/1.4404/316L)
- IP67/IP69K rated for protection against dust and high-pressure washdown
- LED function indicator for operational status
- High bending radius and torsion resistance (≥ 4,000,000 bending cycles, 180°/1 m torsion force)
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Sensor and actuator connections in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Resistant to chemical cleaning agents reducing need for frequent replacements
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0803-L10MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
