DOL-0803-W05MRN | Connectors and cables

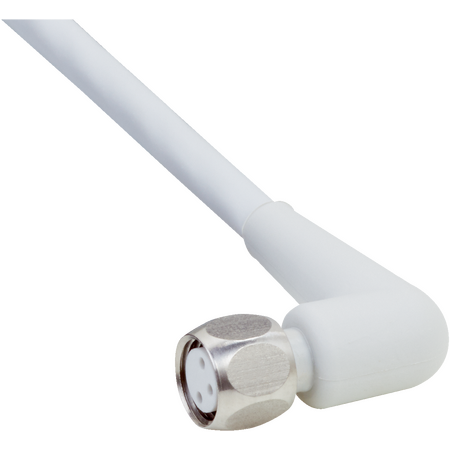

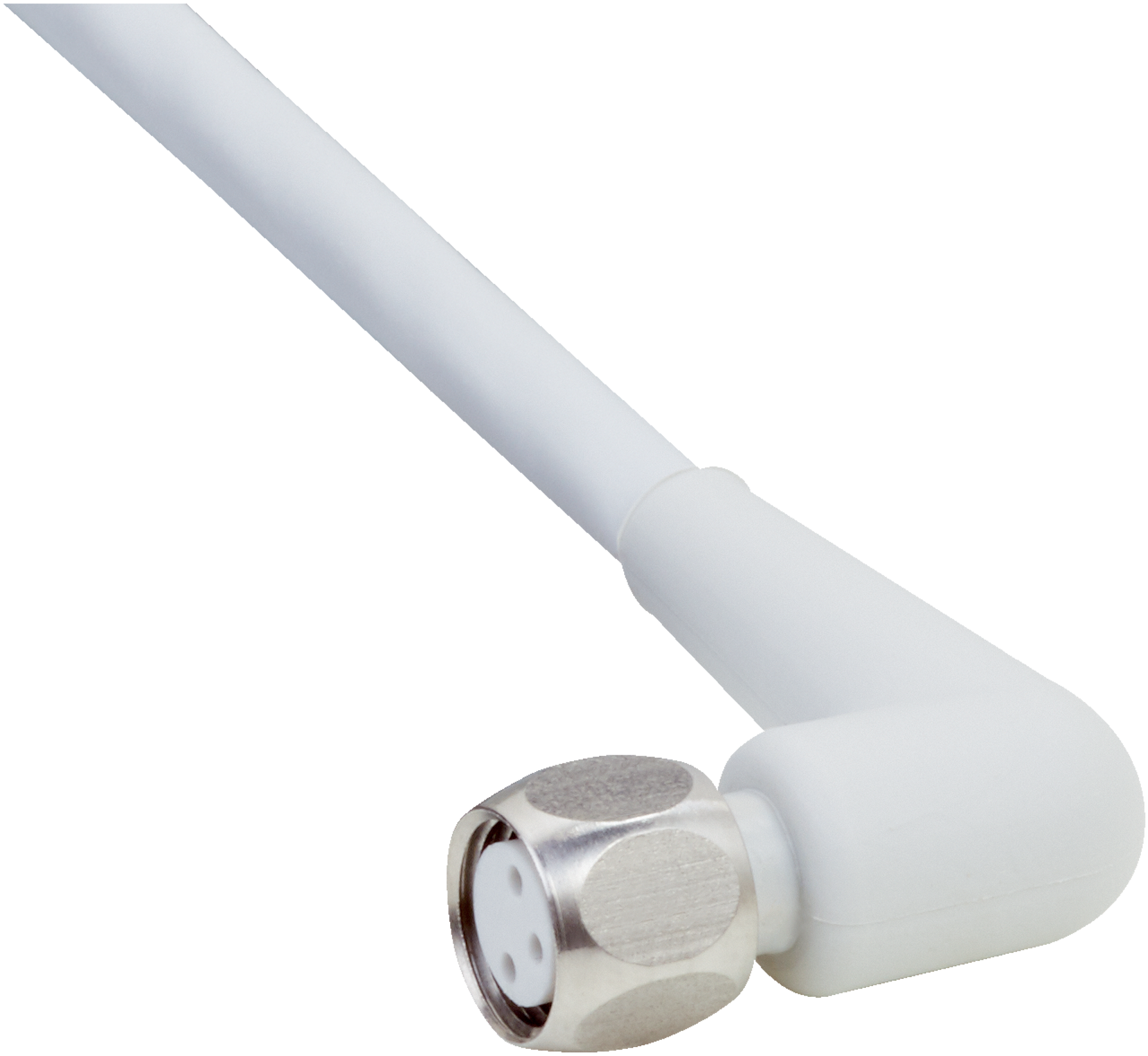

The SICK DOL-0803-W05MRN is a durable M8 female connector with a 5-meter flying leads cable, designed for hygienic and washdown environments with high chemical resistance and IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-0803-W05MRN | Connectors and cables
Brand: SICK
SKU: 6058508
Alternatively Known As: M8 Female Connector Cable, Sensor Cable with Flying Leads, IP67 M8 Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable length: 5 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use -25°C to +105°C, Stationary position -40°C to +105°C
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per 1 m
- Enclosure rating: IP67 / IP69K
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female M8, 3-pin angled connector
- 5 m long, 4-wire PP cable with gray jacket
- Stainless steel locking nut for durability
- IP67/IP69K rated for protection against dust and water
- Chemical resistant to cleaning agents including H2O2 and CH2O2
- High bending cycle durability (≥ 4,000,000 cycles)
- Operating temperature range from -25°C to +105°C (flexible use)
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with IP ratings.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Sensor and actuator cable applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design extends product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0803-W05MRN connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications in hygienic and washdown environments.
