DOL-0804-G02MNI | Connectors and cables

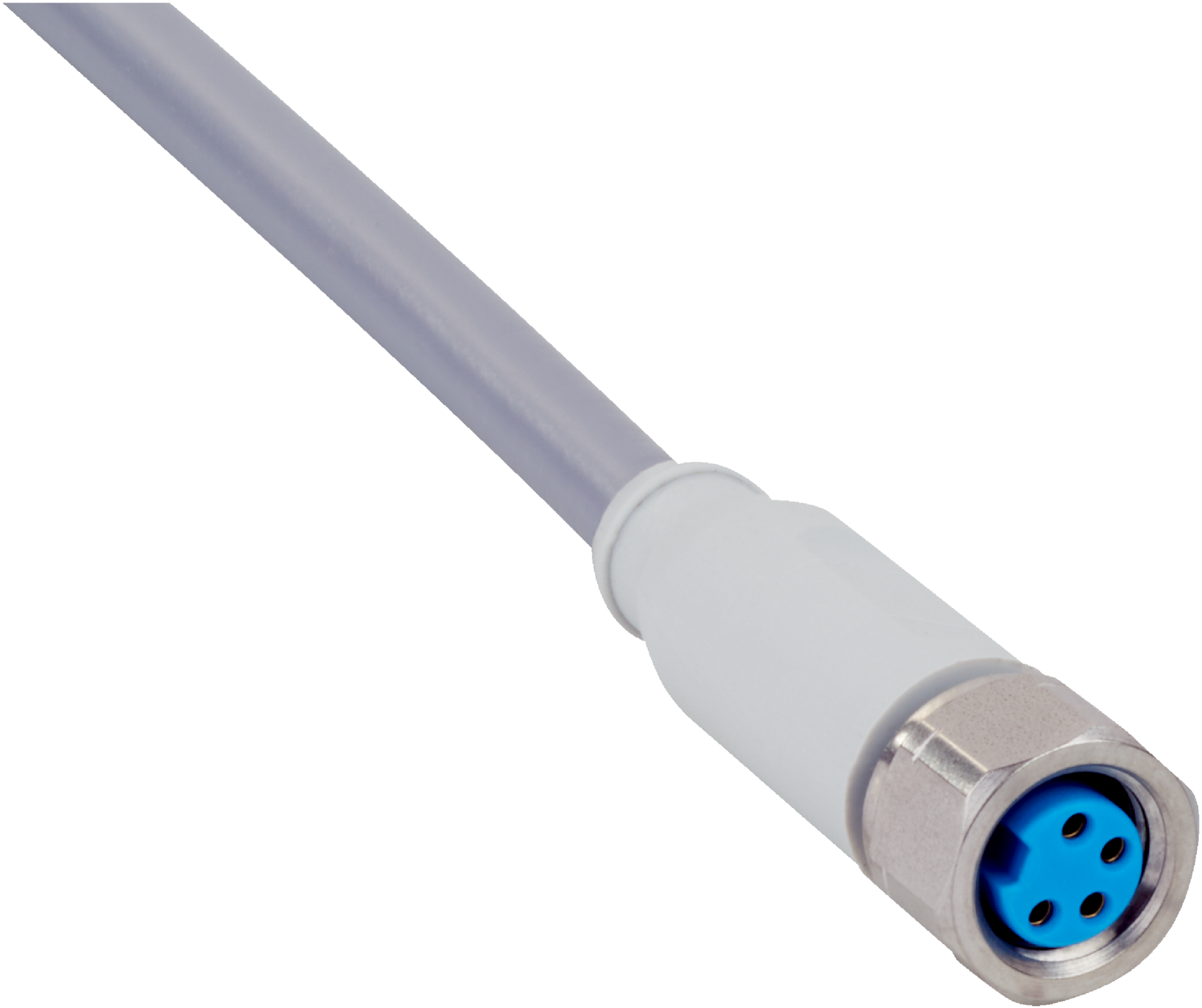

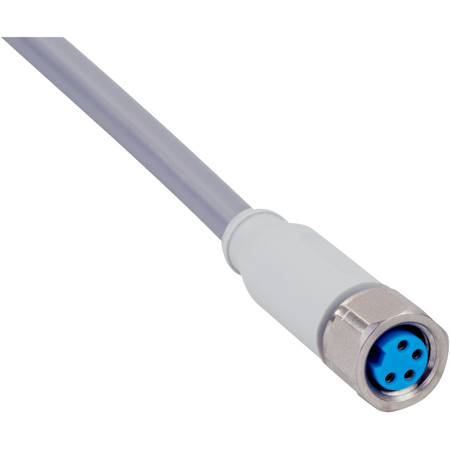

The SICK DOL-0804-G02MNI is a sensor/actuator cable featuring a female M8 4-pin connector and flying leads, designed for hygienic and washdown zones with high IP protection ratings and chemical resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-0804-G02MNI | Connectors and cables
Brand: SICK
SKU: 6059193
Alternatively Known As: M8 4-pin sensor cable, actuator cable with flying leads, PUR connector cable, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Connector color: Blue
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.4 Nm
- Cable length: 2 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Reference voltage: ≤ 30 V
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight
- Flying leads with 2 m, 4-wire PVC cable
- Connector material made of PUR with blue color
- Locking nut made of stainless steel (V4A/1.4404)
- Rated for current loading up to 4 A
- Enclosure rating IP65, IP67, and IP69K for robust protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Tightening torque 0.4 Nm
- Cable diameter 4.8 mm with conductor cross section 0.25 mm²
- Unshielded cable design
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Use in hygienic and washdown zones
- Suitable for sensor and actuator cable connections in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0804-G02MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation applications in hygienic and washdown environments.
