DOL-0804-G10MNI Connectors and cables

BRAND: SICK
SKU: 6059195
$68.70 List price: $86.40
+ −
30 Days Return Electricians Unlock Trade Access

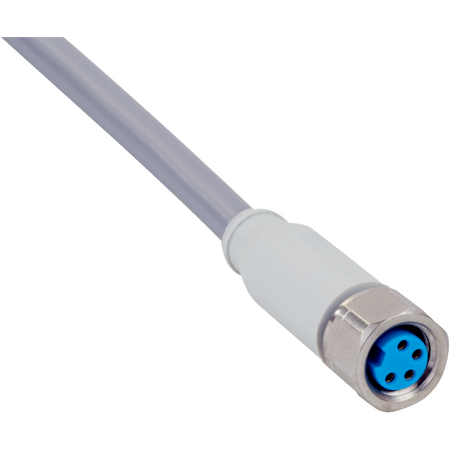

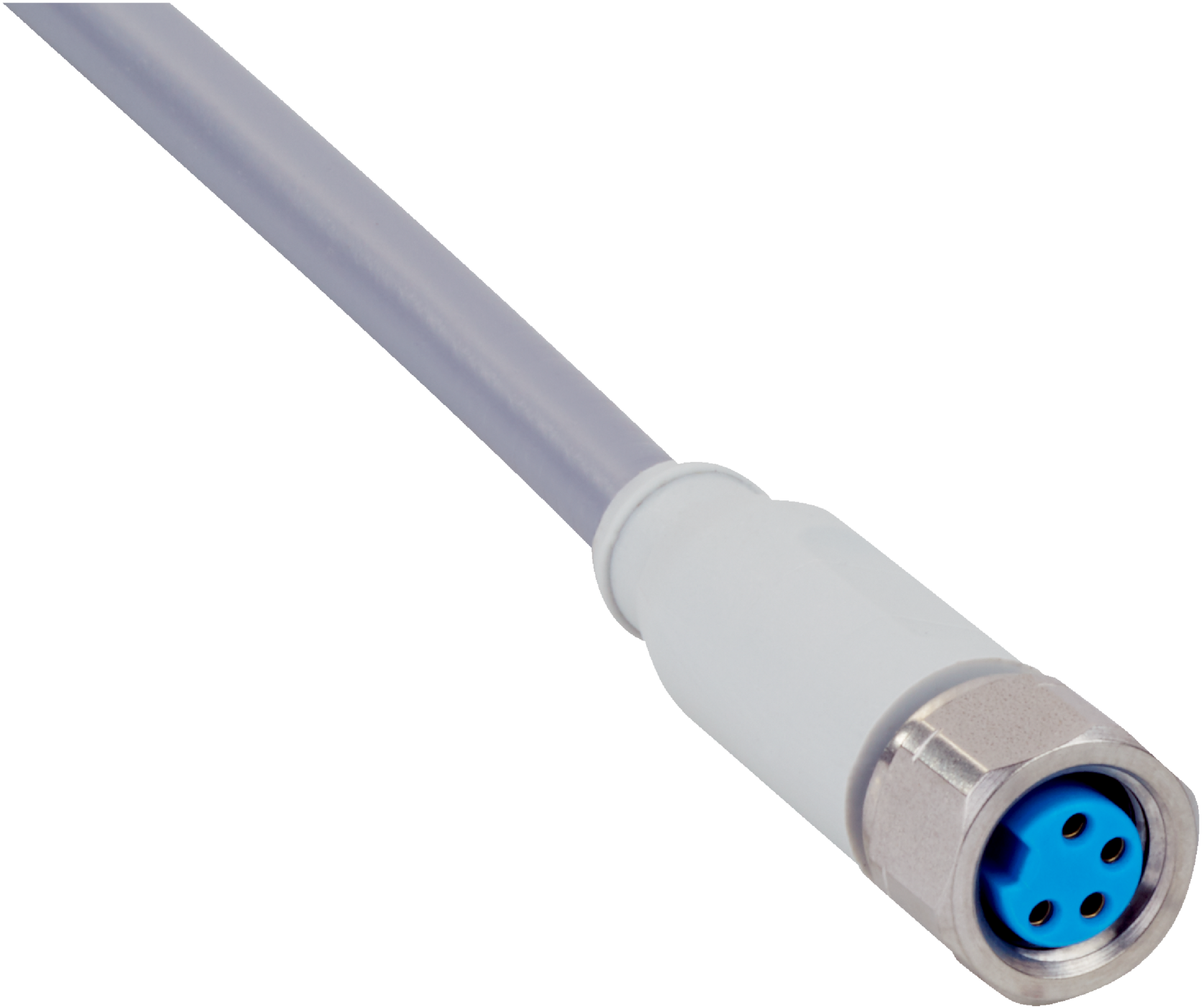

The SICK DOL-0804-G10MNI is a durable M8 4-pin female connector with a 10 m flying leads cable, designed for sensor and actuator applications in hygienic and

Product Name/Title: DOL-0804-G10MNI | Connectors and cables

Brand: SICK

SKU: 6059195

Alternatively Known As: M8 4-pin female connector cable, sensor connector cable, actuator cable with flying leads

Technical Specifications
  • Connection type head A: Female connector, M8, 4-pin, straight
  • Connection type head B: Flying leads
  • Connector material: PUR
  • Locking nut material: Stainless steel (V4A/1.4404)
  • Tightening torque: 0.4 Nm
  • Cable length: 10 m, 4-wire, PVC
  • Cable diameter: 4.8 mm
  • Conductor cross section: 0.25 mm²
  • Shielding: Unshielded
  • Bending radius flexible use: > 10 x cable diameter
  • Bending radius stationary position: > 5 x cable diameter
  • Operating temperature flexible use: -5 °C to +80 °C
  • Operating temperature stationary position: -30 °C to +80 °C
  • Operating temperature head: -25 °C to +85 °C
  • Rated impulse voltage: 0.8 kV
  • Current loading: 4 A
  • Signal type: Sensor/actuator cable
  • Enclosure rating: IP65 / IP67 / IP69K
  • UL File No.: CYJV.E335179
  • Dimensions (H x L x W): 20mm x 10000mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Female M8 4-pin straight connector
  • 10 m long, 4-wire PVC cable with PUR connector material
  • Locking nut made of stainless steel (V4A/1.4404)
  • IP65, IP67, and IP69K rated for protection against dust and water
  • Chemical resistant to cleaning agents certified by ECOLAB
  • Operating temperature range: -30°C to +85°C depending on use
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Sensor and actuator connections in industrial automation
  • Use in hygienic and washdown zones
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Chemical resistance reduces need for frequent replacements
  • Durable materials extend product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK DOL-0804-G10MNI connector cable is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
