DOL-0804-W25MRN | Connectors and cables

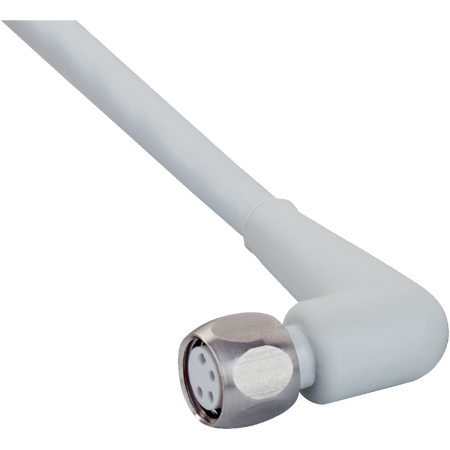

The SICK DOL-0804-W25MRN is a robust sensor/actuator cable featuring a female M8 4-pin angled connector and flying leads, designed for hygienic and washdown zones with high chemical resistance and IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-0804-W25MRN | Connectors and cables
Brand: SICK
SKU: 6058518
Alternatively Known As: M8 Sensor Cable, Actuator Cable with M8 Connector, Industrial Sensor Cable, Hygienic Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404/316L)
- Tightening torque: 0.6 Nm
- Cable length: 25 m
- Cable type: 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +105°C
- Operating temperature stationary position: -40°C to +105°C
- Bending cycles: ≥ 4,000,000
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° per 1 m
- Enclosure rating: IP67/IP69K
- Dimensions (H x L x W): 9mm x 25000mm x 9mm
- Weight: 0.5 kg
Key Features
- Female M8, 4-pin angled connector on head A
- Flying leads on head B
- Connector and jacket material made of durable polypropylene (PP)
- Locking nut made of stainless steel (V4A/1.4404/316L)
- IP67/IP69K rated for protection against dust and high-pressure washdown
- Resistant to chemical cleaning agents including lactic acid and hydrogen peroxide
- High bending cycle durability with ≥ 4,000,000 bending cycles
- Operating temperature range from -25°C to +105°C (flexible use)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Sensor and actuator connections in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and high chemical resistance reduce the need for frequent replacements, minimizing waste.
- IP67/IP69K rating ensures long service life even in harsh environments, reducing environmental impact.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-0804-W25MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation applications requiring durable and hygienic cable solutions.
