DOL-1202-W05MC | Connectors and cables

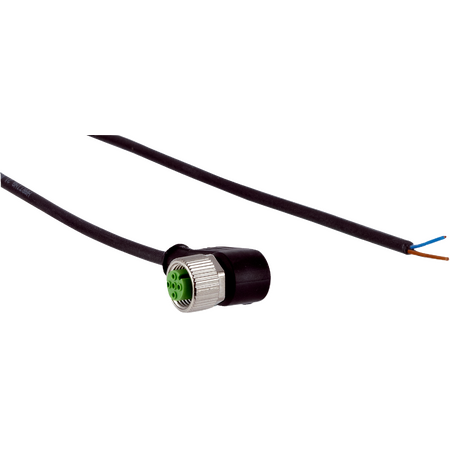

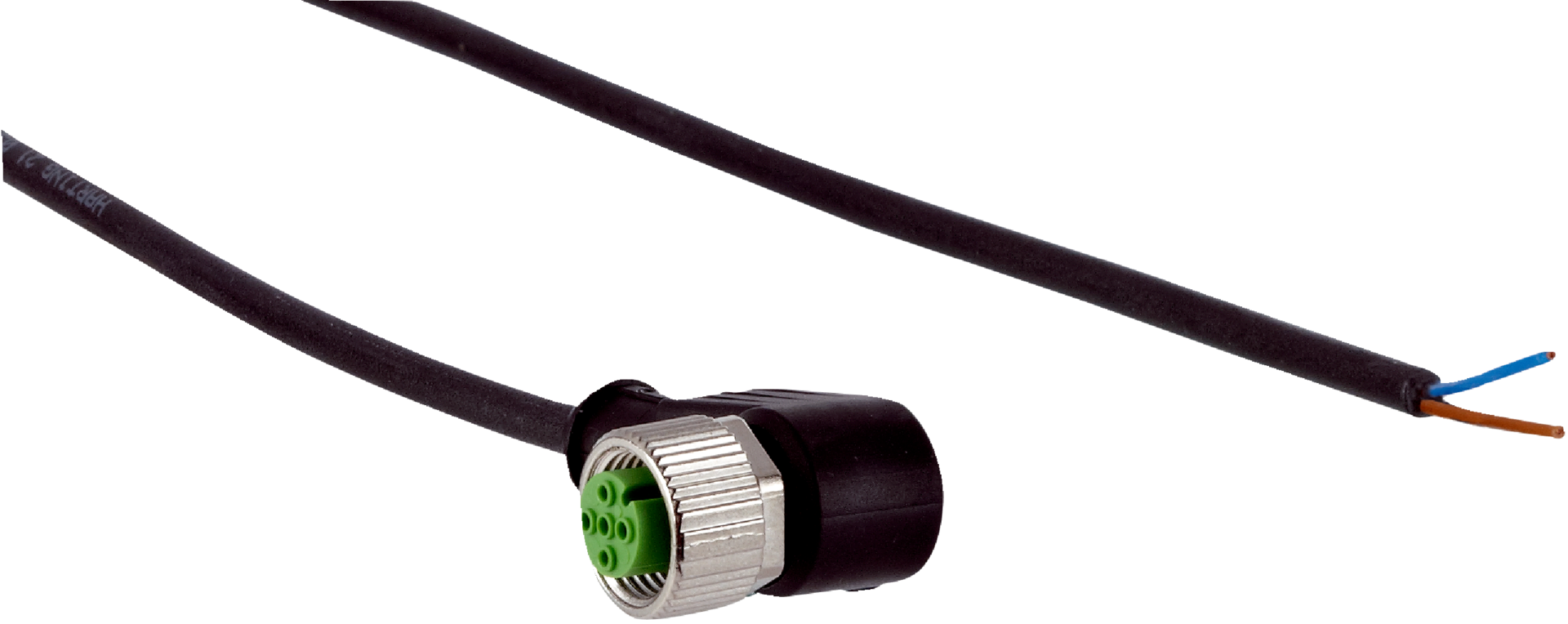

The SICK DOL-1202-W05MC is a 5 meter sensor/actuator cable featuring a female M12 5-pin angled connector and flying leads, designed for use in industrial zones with oils and lubricants, offering robust IP65/IP67/IP69K protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-1202-W05MC | Connectors and cables
Brand: SICK
SKU: 6042067
Alternatively Known As: M12 Sensor Cable, Actuator Cable with M12 Connector, Industrial Sensor Cable, PUR Halogen-Free Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 4.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Signal type: Sensor/actuator cable
- Application environment: Zones with oils and lubricants
- Enclosure rating: IP65, IP67, IP69K
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female M12, 5-pin, angled, A-coded connector on head A
- Flying leads on head B for flexible connection
- 5 meter length, 2-wire PUR halogen-free cable
- Cable diameter of 4.2 mm with 0.34 mm² conductor cross section
- Unshielded sensor/actuator cable
- High enclosure rating: IP65, IP67, and IP69K for harsh environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation zones with oils and lubricants
- Sensor and actuator connections requiring durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1202-W05MC sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
