DOL-1204-L25MNI Connectors and cables

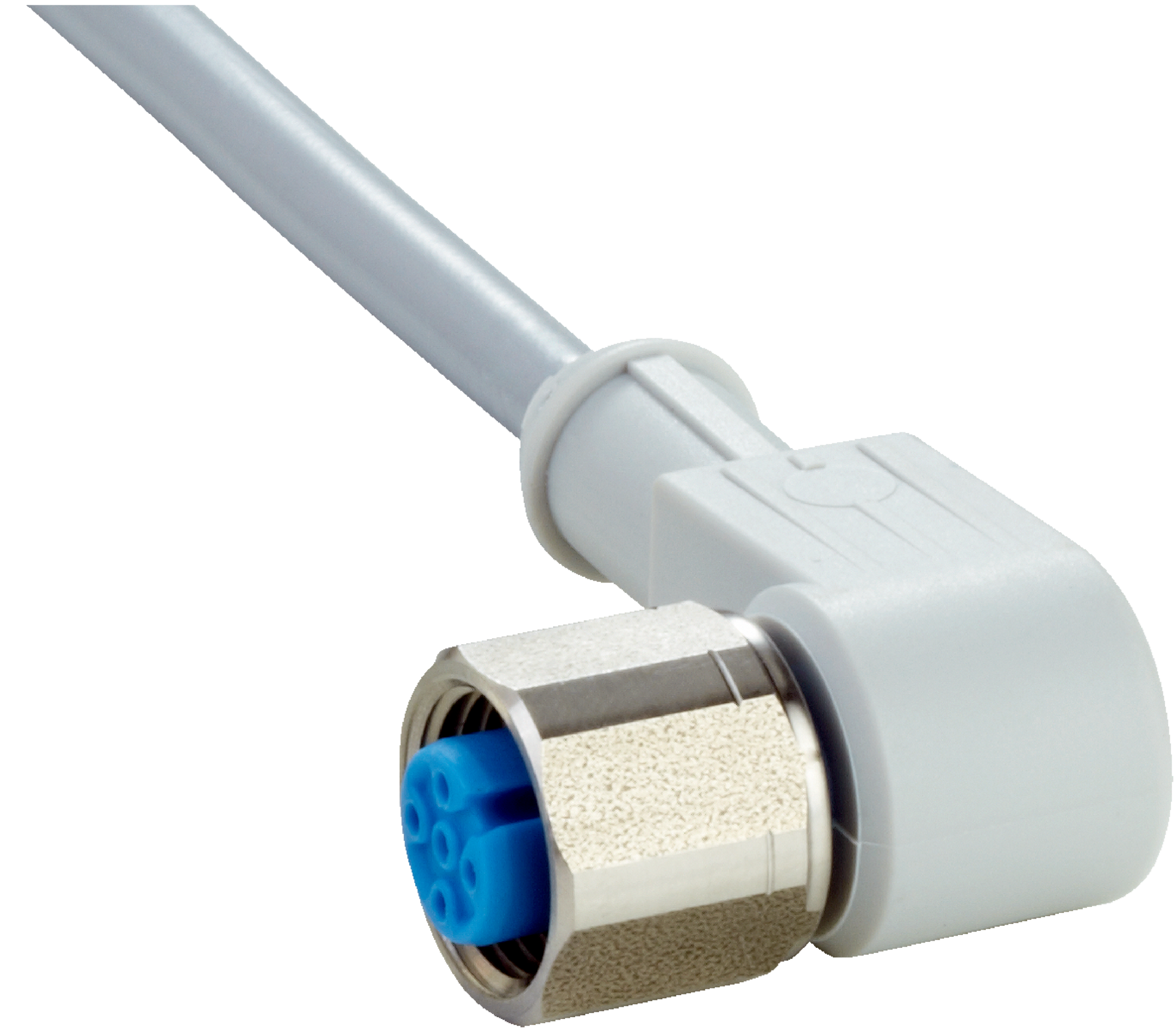

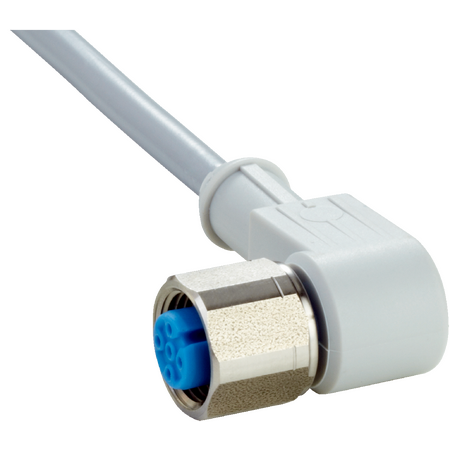

The SICK DOL-1204-L25MNI is a 25m sensor actuator cable featuring a female M12 4-pin angled connector and flying leads
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-1204-L25MNI | Connectors and cables
Brand: SICK
SKU: 6052624
Alternatively Known As: M12 4-pin sensor cable, M12 female connector cable, Industrial sensor cable 25m, PUR sensor cable with LED indicator
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 25 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- LED function indicator included
- Dimensions (H x L x W): 14mm x 25000mm x 14mm
- Weight: 0.5 kg
Key Features
- Female M12 4-pin angled connector on head A
- 25 meter long 4-wire PVC cable with flying leads on head B
- Connector and cable jacket made of durable PUR and PVC materials
- Stainless steel locking nut for secure connection
- LED function indicator integrated
- IP65, IP67, and IP69K enclosure rating for high protection
- Chemical resistant to ECOLAB certified cleaning agents
- Operating temperature range from -30°C to +85°C depending on use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Sensor and actuator cable applications requiring chemical resistance
- Industrial automation environments with LED function indicator needs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Chemical resistance minimizes environmental contamination risk
- Long cable length reduces need for multiple connectors and cables
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204-L25MNI connector and cable assembly is available for immediate purchase, ideal for industrial sensor and actuator applications in hygienic and washdown environments.
