DOL-1205-G10MNI | Connectors and cables

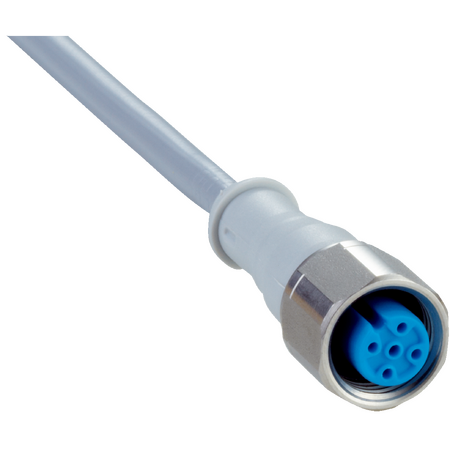

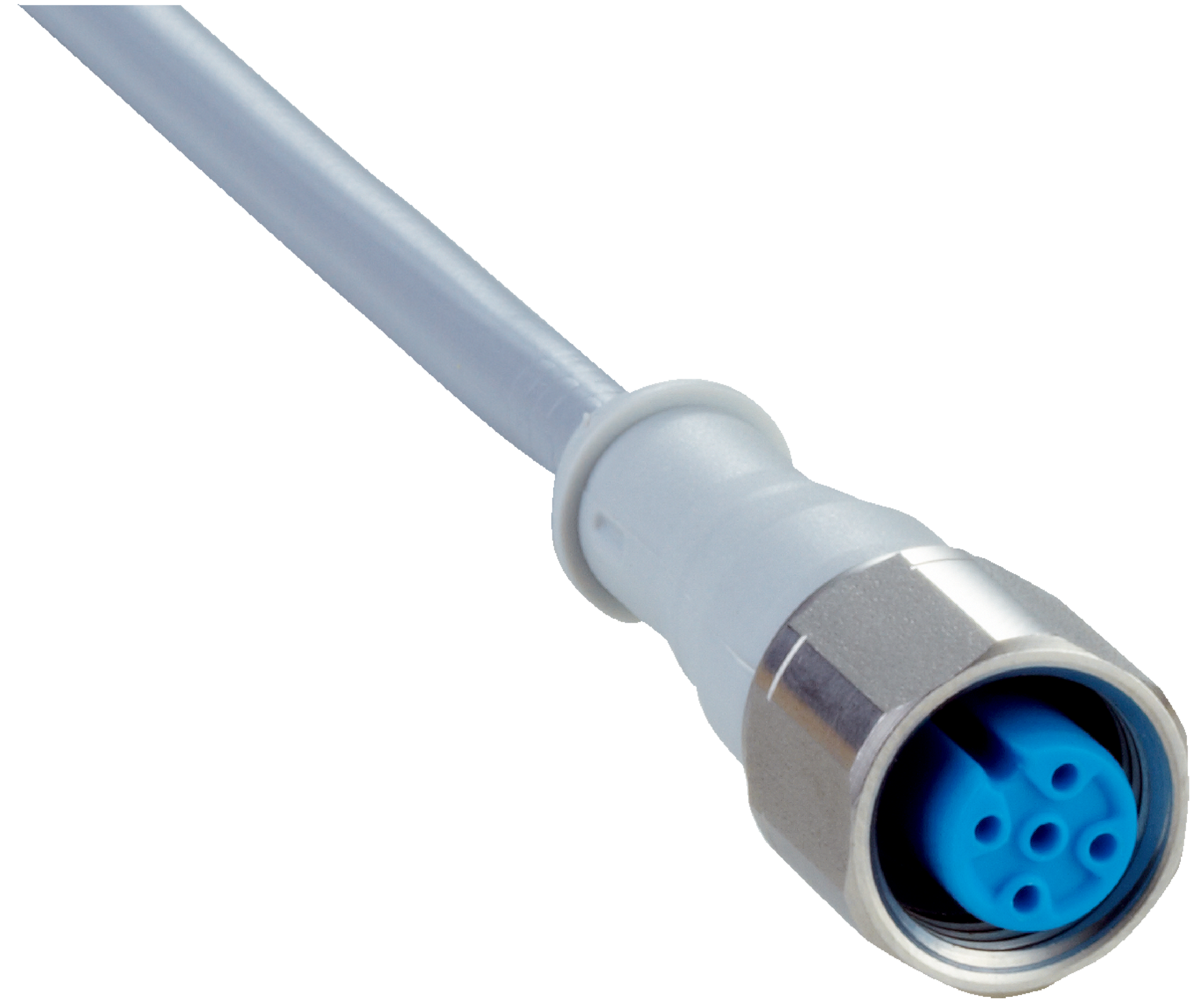

The SICK DOL-1205-G10MNI is a robust M12 5-pin female connector with 10m flying leads cable, designed for sensor and actuator applications in hygienic and washdown environments with high IP protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-1205-G10MNI | Connectors and cables
Brand: SICK
SKU: 6052627
Alternatively Known As: M12 5-pin female connector cable, Sensor actuator cable, PUR connector cable, Flying lead sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 10 m, 5-wire, PVC
- Cable diameter: 5.2 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Reference voltage: ≤ 125 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 14mm x 100mm x 14mm
- Weight: 0.2 kg
Key Features
- Female M12, 5-pin straight connector on head A
- Flying leads on head B
- Connector and cable made with durable PUR and PVC materials
- Locking nut made of stainless steel (V4A/1.4404)
- IP65, IP67, and IP69K enclosure rating for high protection
- Chemical resistant to certain cleaning agents (ECOLAB certified)
- Operating temperature range from -30°C to +85°C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with safety standards.
Applications
- Sensor and actuator cable applications
- Suitable for hygienic and washdown zones
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- ECOLAB certified for resistance to chemical cleaning agents, reducing environmental contamination risks
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-1205-G10MNI connector cable is available for immediate purchase, ideal for industrial sensor and actuator applications in hygienic and washdown zones.
