DOL-1208-W05MAC1 | Connectors and cables

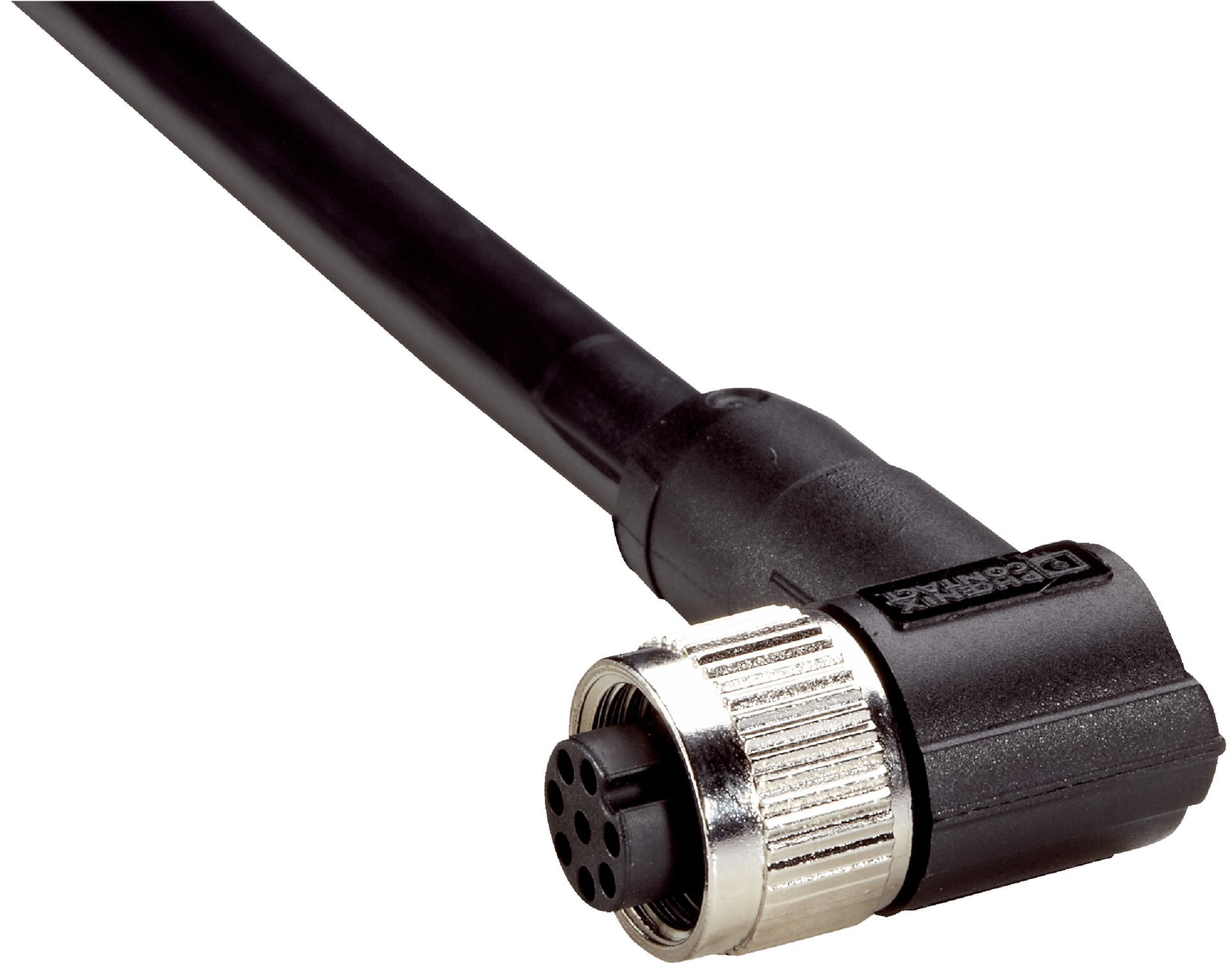

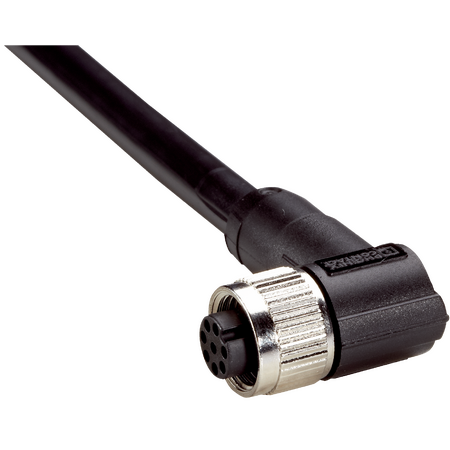

The SICK DOL-1208-W05MAC1 is a high-quality M12 8-pin female connector with a 5m PUR halogen-free cable, designed for reliable industrial sensor and actuator connections with excellent environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-1208-W05MAC1 | Connectors and cables
Brand: SICK
SKU: 6037725
Alternatively Known As: M12 8-pin female connector cable, SICK sensor cable, industrial connector cable, PUR halogen-free cable assembly
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled
- Connection type head B: Flying leads
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm², 4 x 2 x 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Signal type: HIPERFACE®, Incremental
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 20mm x 5000mm x 20mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin angled connector on head A
- 5 meter length, 8-wire PUR halogen-free cable
- Shielded cable with 0.25 mm² conductor cross section
- High IP rating: IP65, IP67, and IP69K for harsh environments
- Supports HIPERFACE® and Incremental signal types
- Flexible bending radius > 10 x cable diameter for dynamic use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connections
- Robotics and machinery wiring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and shielded cable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1208-W05MAC1 connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
