DOL-1212-G20MAC1 | Connectors and cables

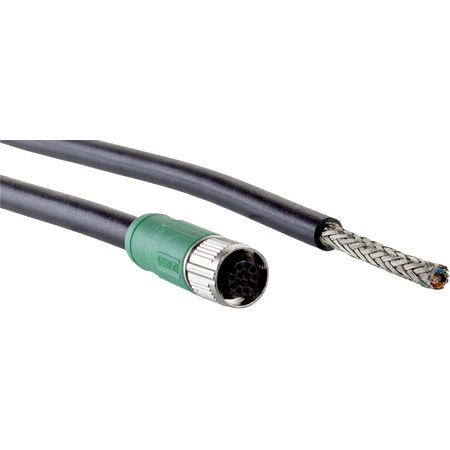

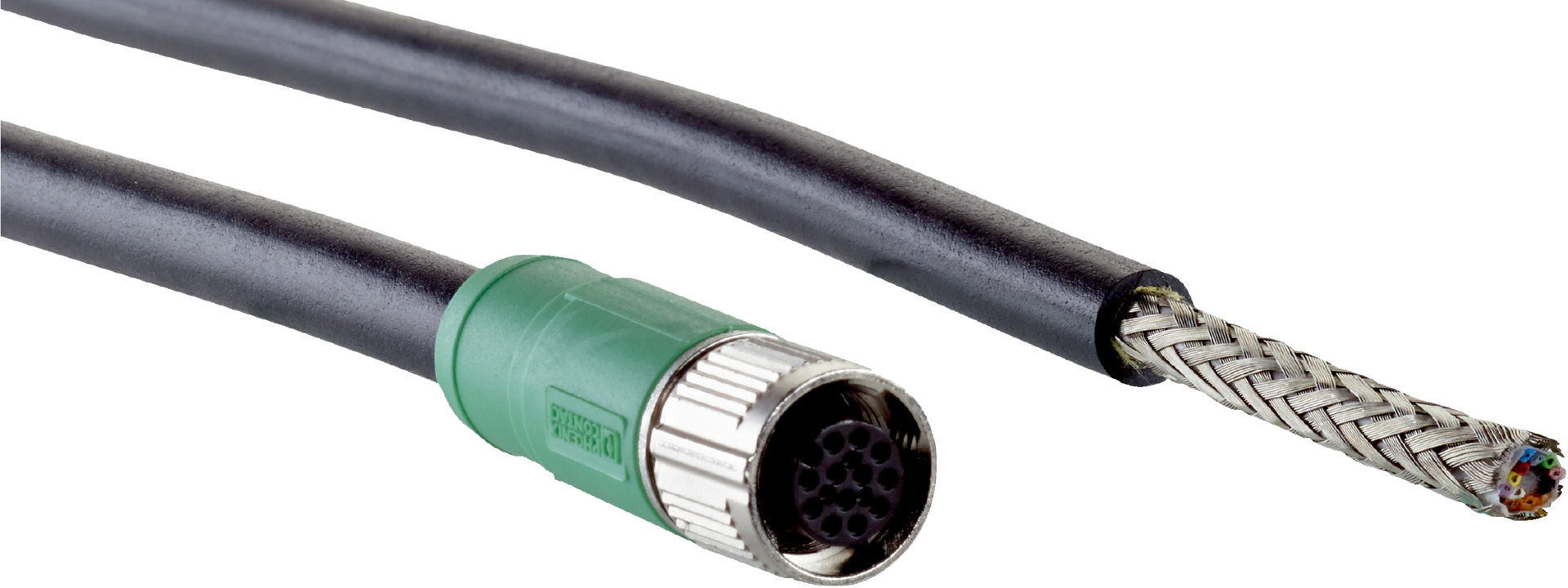

The SICK DOL-1212-G20MAC1 is a 20-meter long, 12-wire, shielded M12 female connector cable with a PUR halogen-free jacket, designed for industrial signal transmission and drag chain use with high IP protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-1212-G20MAC1 | Connectors and cables
Brand: SICK
SKU: 6053276
Alternatively Known As: M12 12-pin female connector cable, SICK M12 cable, Industrial connector cable 20m, SSI signal cable
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 20 m
- Cable wires: 12-wire
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 8.5 mm
- Conductor cross section: 12 x 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 6 x cable diameter
- Reference voltage: ≤ 60 V
- Signal type: SSI
- Enclosure rating: IP65 / IP67 / IP69K
- Suitable for drag chain use
- Dimensions (H x L x W): 8.5mm x 8500mm x 8500mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- 20 m length, 12-wire PUR halogen-free cable
- Shielded cable with black PUR jacket
- High enclosure rating: IP65, IP67, IP69K
- Suitable for flexible use with bending radius > 10 x cable diameter
- Stationary use bending radius > 6 x cable diameter
- Signal type: SSI
- Halogen-free and RoHS compliant
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Use in drag chain applications requiring flexible cables
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1212-G20MAC1 connector cable is available for immediate purchase, ideal for industrial automation and control system applications.
