DOL-2308-G15MJB2 | Connectors and cables

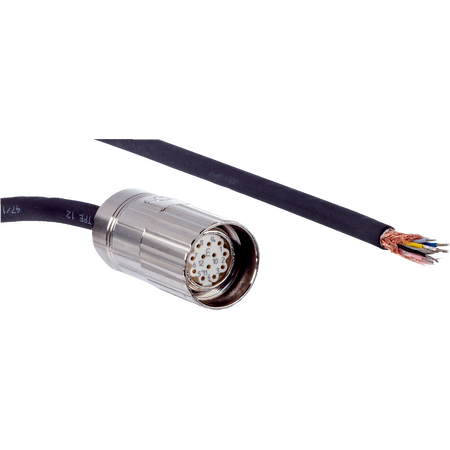

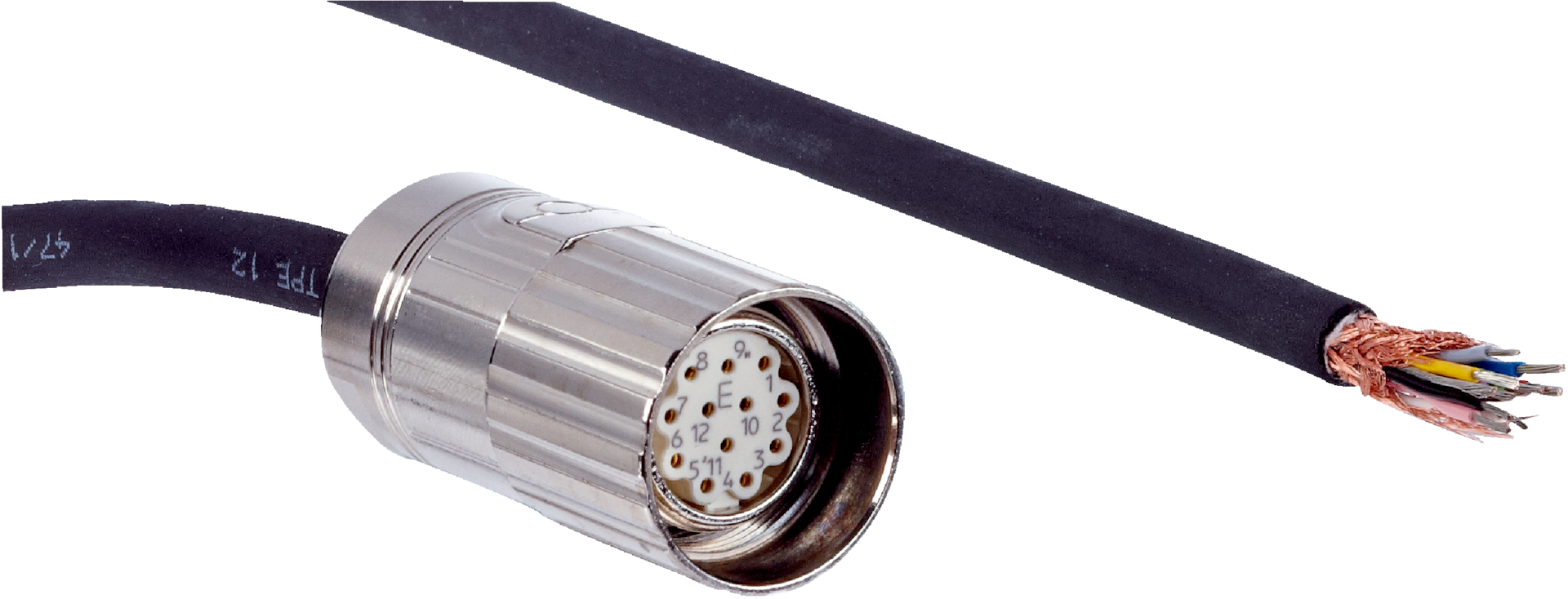

The SICK DOL-2308-G15MJB2 is a high-quality connector and cable assembly featuring a female M23 12-pin connector, 15 m halogen-free PUR cable, and IP66/IP67 protection, ideal for industrial automation and HIPERFACE® signal applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2308-G15MJB2 | Connectors and cables
Brand: SICK
SKU: 2031073
Alternatively Known As: M23 12-pin connector cable, HIPERFACE cable assembly, industrial connector cable, SICK connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Brass, nickel-plated
- Cable length: 15 m
- Cable wires: 8-wire
- Cable jacket material: PUR, halogen-free
- Cable diameter: 5.3 mm
- Shielding: Shielded
- Bending radius flexible use: > 15 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -30 °C to +90 °C
- Operating temperature stationary position: -20 °C to +130 °C
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: HIPERFACE®
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 0.5 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Durable TPU connector material with black color
- Brass, nickel-plated locking nut for secure connection
- 15 m length, 8-wire PUR halogen-free cable with black jacket
- Shielded cable for signal integrity
- High bending radius for flexible use and stationary positions
- Operating temperature range from -30 °C to +130 °C
- Current loading capacity of 7 A
- Supports HIPERFACE® signal type
- Enclosure rating IP66/IP67 for dust and water protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors and cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Robotics and machinery requiring HIPERFACE® signal transmission
- Environments needing robust, shielded cable connections with IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-2308-G15MJB2 connector and cable assembly is available for immediate purchase, ideal for industrial automation and machinery requiring reliable HIPERFACE® signal connections.
