DOL-2308-G30MJB2 | Connectors and cables

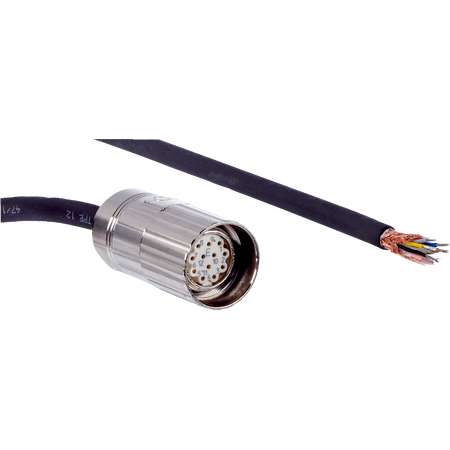

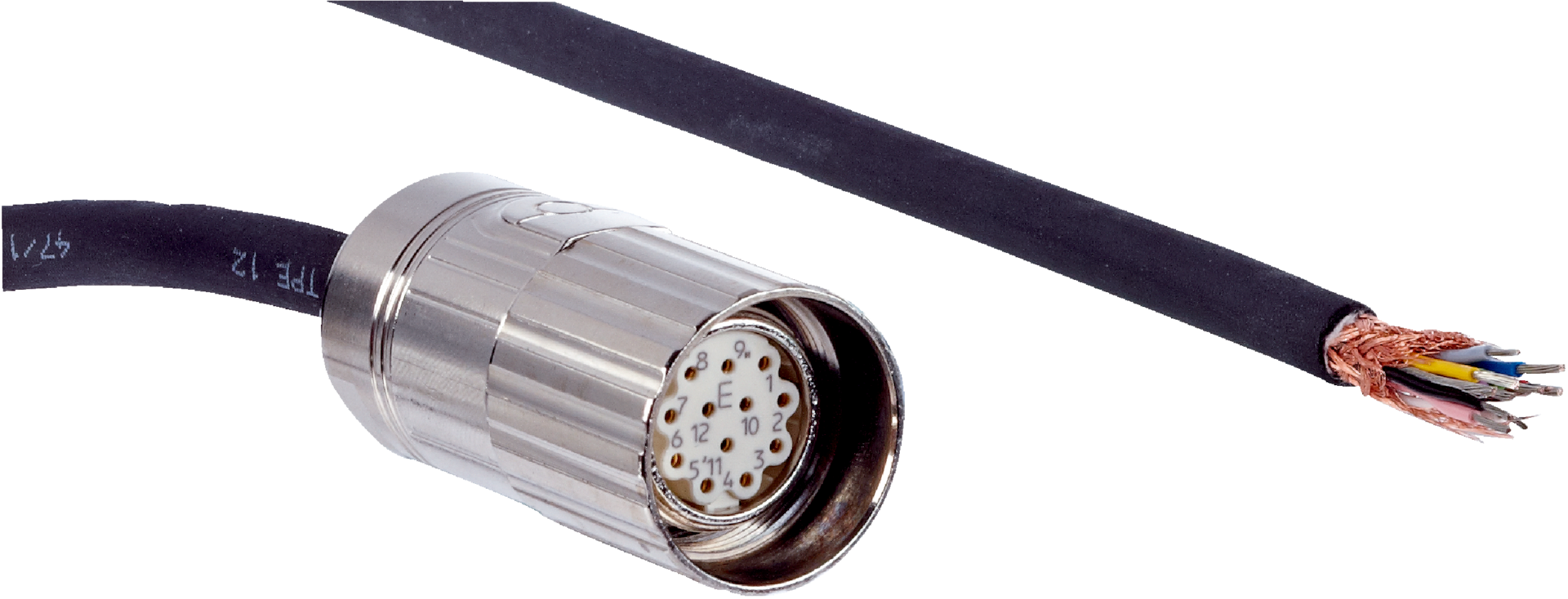

The SICK DOL-2308-G30MJB2 is a robust industrial connector cable featuring a 12-pin M23 female connector and 30 m PUR halogen-free cable, designed for reliable signal transmission in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2308-G30MJB2 | Connectors and cables
Brand: SICK
SKU: 2056287
Alternatively Known As: M23 12-pin connector cable, Industrial signal cable, HIPERFACE connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Brass, nickel-plated
- Cable length: 30 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 5.3 mm
- Shielding: Shielded
- Bending radius flexible use: > 15 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –30 °C to +90 °C
- Operating temperature stationary position: –20 °C to +130 °C
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: HIPERFACE®
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 53mm x 30000mm x 53mm
- Weight: 0.5 kg
Key Features
- Female M23, 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Durable TPU connector material with brass, nickel-plated locking nut
- 30 m PUR halogen-free cable with 8 wires and shielding
- High IP66/IP67 enclosure rating for dust and water resistance
- Suitable for HIPERFACE® signal type transmission
- Wide operating temperature range for flexible and stationary use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connector systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Robotics and machinery connections
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2308-G30MJB2 connector cable is available for immediate purchase, ideal for industrial automation and machinery signal transmission applications.
