DOL-2312-G03MMA1 | Connectors and cables

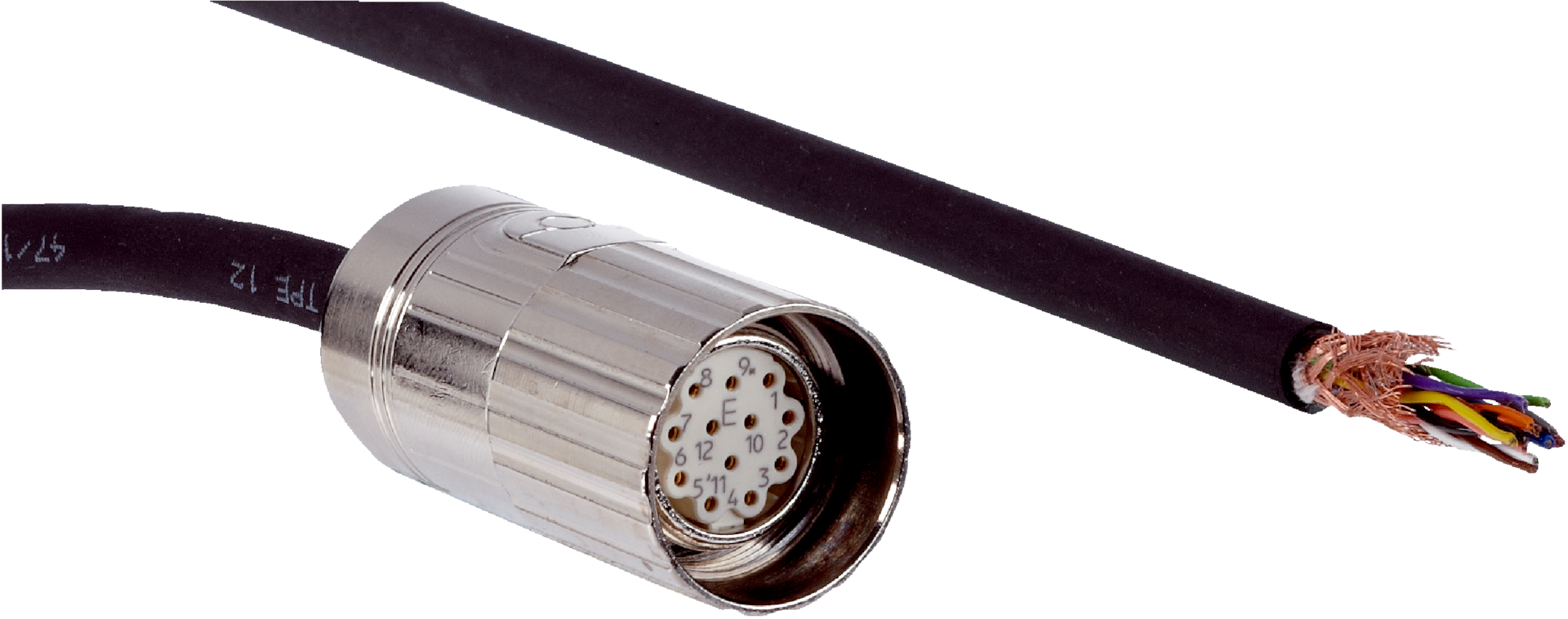

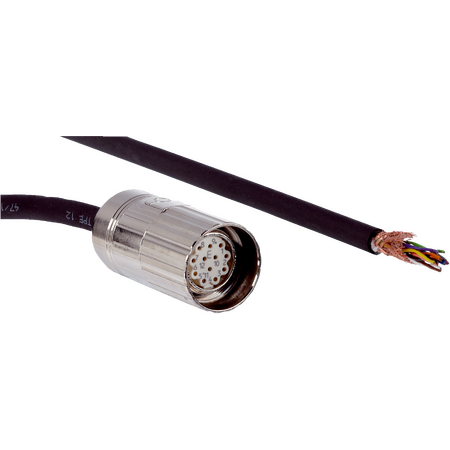

The DOL-2312-G03MMA1 connector and cable by SICK features a 12-pin female M23 connector with a 3-meter PUR halogen-free cable, designed for robust industrial signal transmission with IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G03MMA1 | Connectors and cables
Brand: SICK
SKU: 2029201
Alternatively Known As: M23 12-pin connector cable, Industrial sensor cable, Shielded M23 connector lead
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Brass, nickel-plated
- Cable length: 3 m
- Cable type: 12-wire PUR, halogen-free
- Cable diameter: 7.8 mm
- Conductor cross section: 8 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Current loading: 7 A
- Signal type: SSI, RS-422, TTL, HTL
- Enclosure rating: IP66/IP67
- Operating temperature flexible use: -30°C to +90°C
- Operating temperature stationary position: -20°C to +130°C
- Reference voltage: ≤ 160 V
- Dimensions (H x L x W): 30mm x 3000mm x 30mm
- Weight: 0.3 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Durable TPU connector material with black color
- Brass, nickel-plated locking nut for secure connection
- 3 m PUR halogen-free cable with 12 wires
- Shielded cable for signal integrity
- High IP66/IP67 enclosure rating for dust and water resistance
- Supports SSI, RS-422, TTL, HTL signal types
- Operating temperature range: -30°C to +130°C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Robotics and sensor connectivity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The DOL-2312-G03MMA1 connector and cable by SICK is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
