DOL-2312-G05MMA2 | Connectors and cables

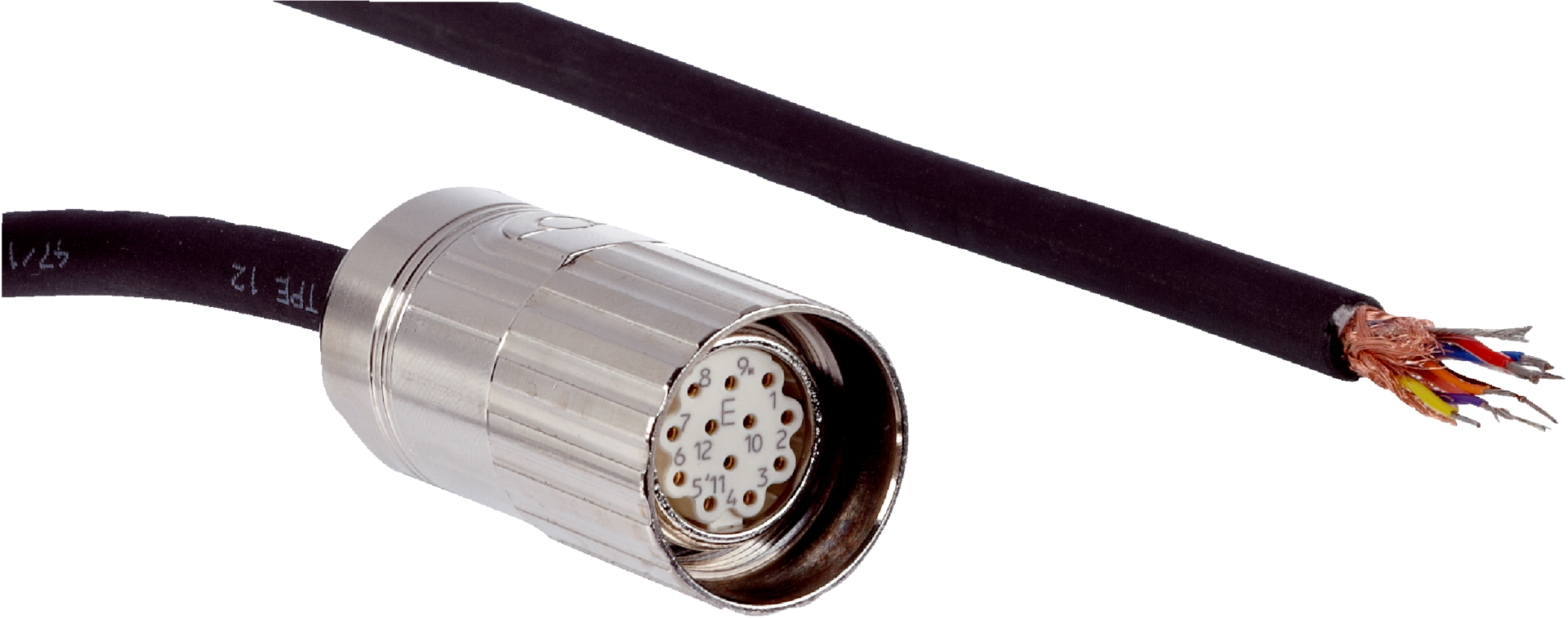

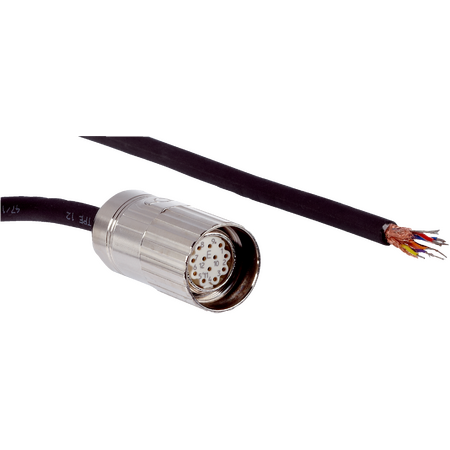

The SICK DOL-2312-G05MMA2 is a high-quality connector and cable assembly featuring a female M23 12-pin connector, shielded PUR cable, and IP66/IP67 rating, ideal for industrial signal transmission applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G05MMA2 | Connectors and cables
Brand: SICK
SKU: 2029208
Alternatively Known As: M23 12-pin connector cable, SICK industrial connector cable, shielded M23 cable assembly
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: SSI
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 30mm x 5000mm x 30mm
- Weight: 0.3 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Zinc die-cast, nickel-plated locking nut for durability
- 5 m PUR halogen-free cable with black jacket
- Shielded cable for signal integrity
- High enclosure rating of IP66/IP67 for dust and water protection
- Supports SSI signal type with 7 A current loading
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Environments requiring robust, shielded cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2312-G05MMA2 connector and cable assembly is available for immediate purchase, ideal for industrial automation and control system applications.
