DOL-2312-G10MLD1 | Connectors and cables

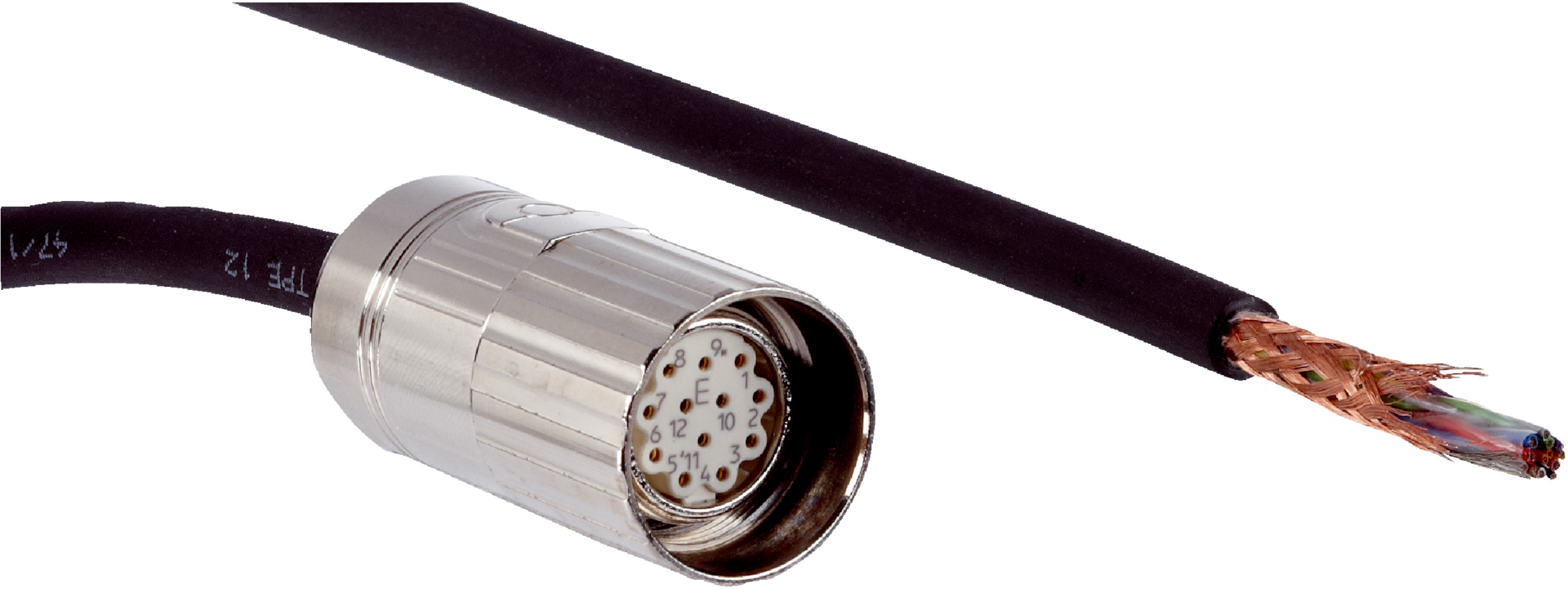

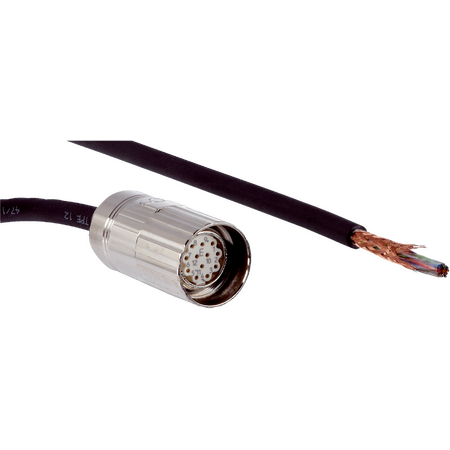

The DOL-2312-G10MLD1 by SICK is a high-quality connector and cable assembly featuring a 12-pin female M23 connector and a 10 m shielded PUR cable, designed for reliable incremental signal transmission in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G10MLD1 | Connectors and cables
Brand: SICK
SKU: 2062204
Alternatively Known As: M23 12-pin connector cable, Incremental signal cable, Shielded industrial connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable wires: 11-wire
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 7.5 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 1 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 30mm x 10000mm x 30mm
- Weight: 0.5 kg
Key Features
- Female connector M23, 12-pin, straight
- 10 m PUR cable with 11 wires
- Shielded cable for signal integrity
- Locking nut made of zinc die-cast, nickel-plated
- Enclosure rating IP66/IP67 for dust and water protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- Incremental signal applications requiring robust connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements
- Shielding minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The DOL-2312-G10MLD1 connector and cable assembly by SICK is available for immediate purchase, ideal for industrial automation and control applications.
