DOL-2312-G20MMD1 | Connectors and cables

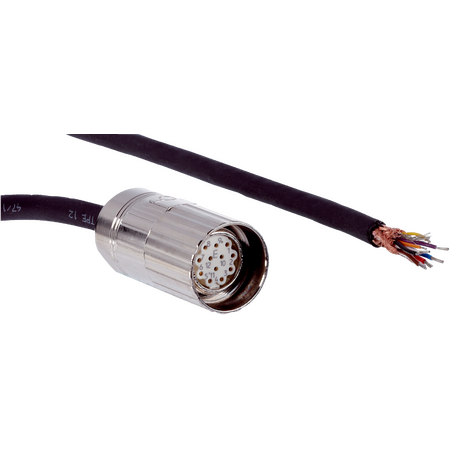

The DOL-2312-G20MMD1 by SICK is a high-quality connector and cable assembly featuring a 12-pin M23 female connector and 20 m halogen-free PUR cable, designed for reliable incremental signal transmission in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G20MMD1 | Connectors and cables
Brand: SICK
SKU: 2062246
Alternatively Known As: M23 12-pin connector cable, Incremental signal cable assembly, Industrial connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 20 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 30mm x 20000mm x 30mm
- Weight: 0.5 kg
Key Features
- Female connector, M23, 12-pin, straight
- 20 m length, 12-wire PUR cable, halogen-free
- Zinc die-cast, nickel-plated locking nut
- Shielded cable for signal integrity
- Enclosure rating IP66/IP67 for dust and water protection
- Suitable for stationary and drag chain operation with specified bending radii
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Incremental signal transmission in machinery
- Environments requiring robust, shielded cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The DOL-2312-G20MMD1 connector and cable assembly by SICK is available for immediate purchase, ideal for industrial automation and control applications requiring reliable incremental signal transmission.
