DOL-2312-G30MMA2 | Connectors and cables

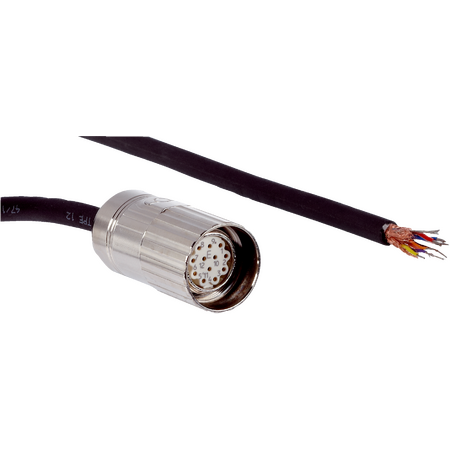

The SICK DOL-2312-G30MMA2 is a high-quality connector and cable assembly featuring a female M23 12-pin connector and a 30 m PUR halogen-free cable, designed for industrial signal transmission with IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G30MMA2 | Connectors and cables
Brand: SICK
SKU: 2029211
Alternatively Known As: M23 12-pin connector cable, SICK industrial connector cable, SSI signal cable assembly
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 30 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: SSI
- Enclosure rating: IP66 / IP67
- Dimensions (H x L x W): 30mm x 30000mm x 30mm
- Weight: 1.2 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Zinc die-cast, nickel-plated locking nut for durability
- 30 m PUR halogen-free cable with 12 wires
- Shielded cable for signal integrity
- High enclosure rating of IP66/IP67 for harsh environments
- Supports current loading of 7 A
- Suitable for SSI signal type
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Signal transmission in machinery
- SSI signal applications requiring robust connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2312-G30MMA2 connector and cable assembly is available for immediate purchase, ideal for industrial automation and signal transmission applications.
