DOL-2312-G30MMA3 | Connectors and cables

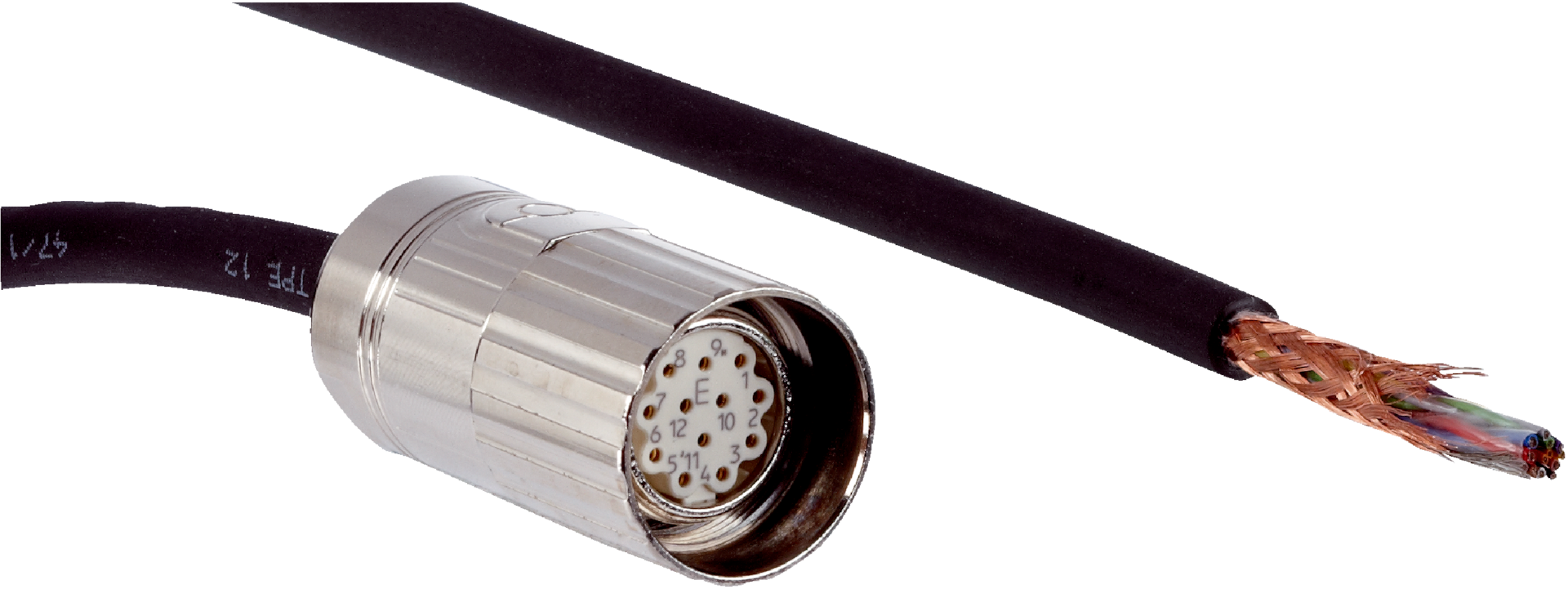

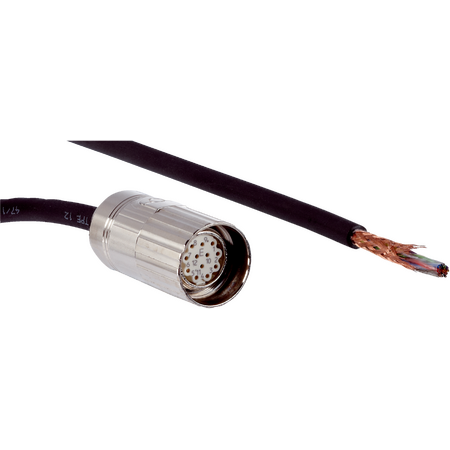

The SICK DOL-2312-G30MMA3 is a robust connector and cable assembly featuring a female M23 12-pin connector and a 30 m shielded PUR cable, designed for industrial incremental signal applications with IP66/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-2312-G30MMA3 | Connectors and cables
Brand: SICK
SKU: 2029217
Alternatively Known As: M23 12-pin connector cable assembly, SICK incremental signal cable, industrial connector cable 30m
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 30 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66 / IP67
- Dimensions (H x L x W): 30mm x 30000mm x 30mm
- Weight: 1.2 kg
Key Features
- Female M23 12-pin straight connector on head A
- 30 m PUR halogen-free cable with 12 wires
- Shielded cable for signal integrity
- Locking nut made of zinc die-cast, nickel-plated
- High enclosure rating of IP66/IP67 for dust and water protection
- Supports incremental signal type with 7 A current loading
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation and control systems
- Incremental signal transmission in machinery
- Harsh environment electrical connections requiring IP66/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2312-G30MMA3 connector and cable assembly is available for immediate purchase, ideal for industrial automation and control applications requiring reliable incremental signal transmission.
