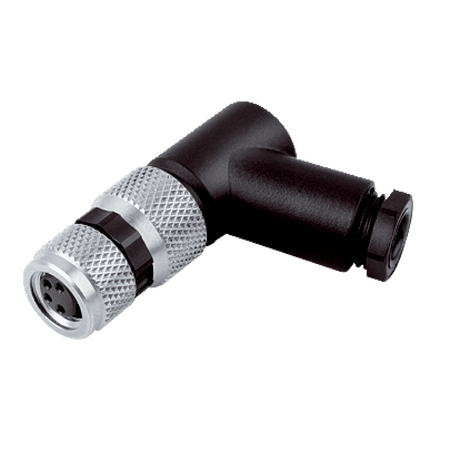

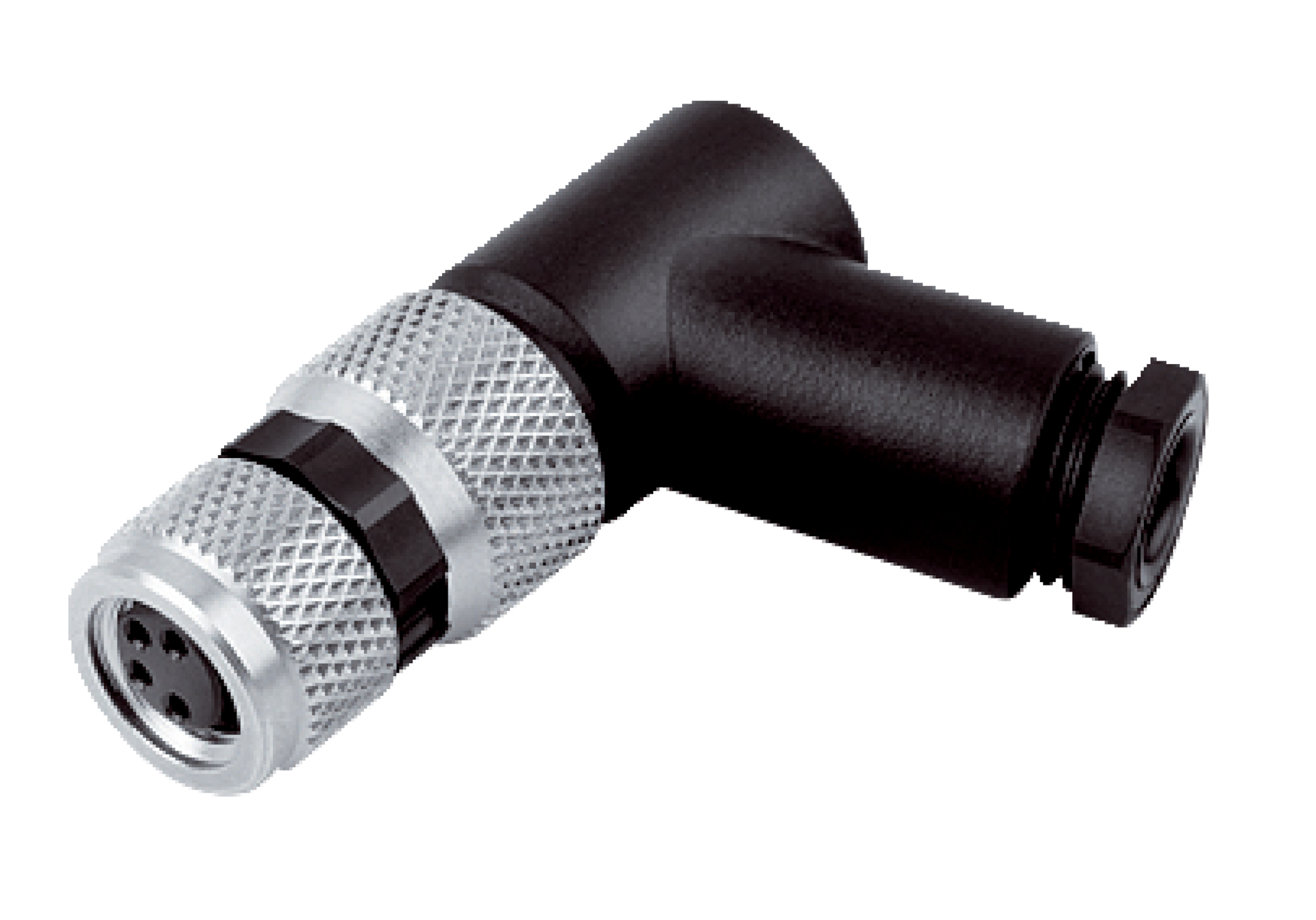

DOS-0804-WSK | Connectors and cables
The SICK DOS-0804-WSK is a robust M8 4-pin female connector cable designed for industrial automation applications, featuring IP67 protection and durable materials for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOS-0804-WSK | Connectors and cables
Brand: SICK
SKU: 6053169
Alternatively Known As: M8 4-pin female connector cable, SICK M8 connector, Industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type: Screw-type terminals
- Connector material: PBT
- Connector color: Black
- Locking nut material: Nickel-plated brass
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Permitted cross-section: 0.14 mm² to 0.5 mm²
- Reference voltage: ≤ 30 V
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature head: -40 °C to +85 °C
- UL File No.: E335179
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Female M8, 4-pin angled connector with A-coding
- Screw-type terminals for secure wiring
- Connector made from durable PBT material
- Nickel-plated brass locking nut for corrosion resistance
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +85°C
- Current loading capacity of 4 A
- Unshielded design suitable for general industrial use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor connections
- Factory machinery wiring
- Robotics and control systems requiring secure M8 connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOS-0804-WSK M8 4-pin female connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
