DOS-7805-GKEND | Connectors and cables

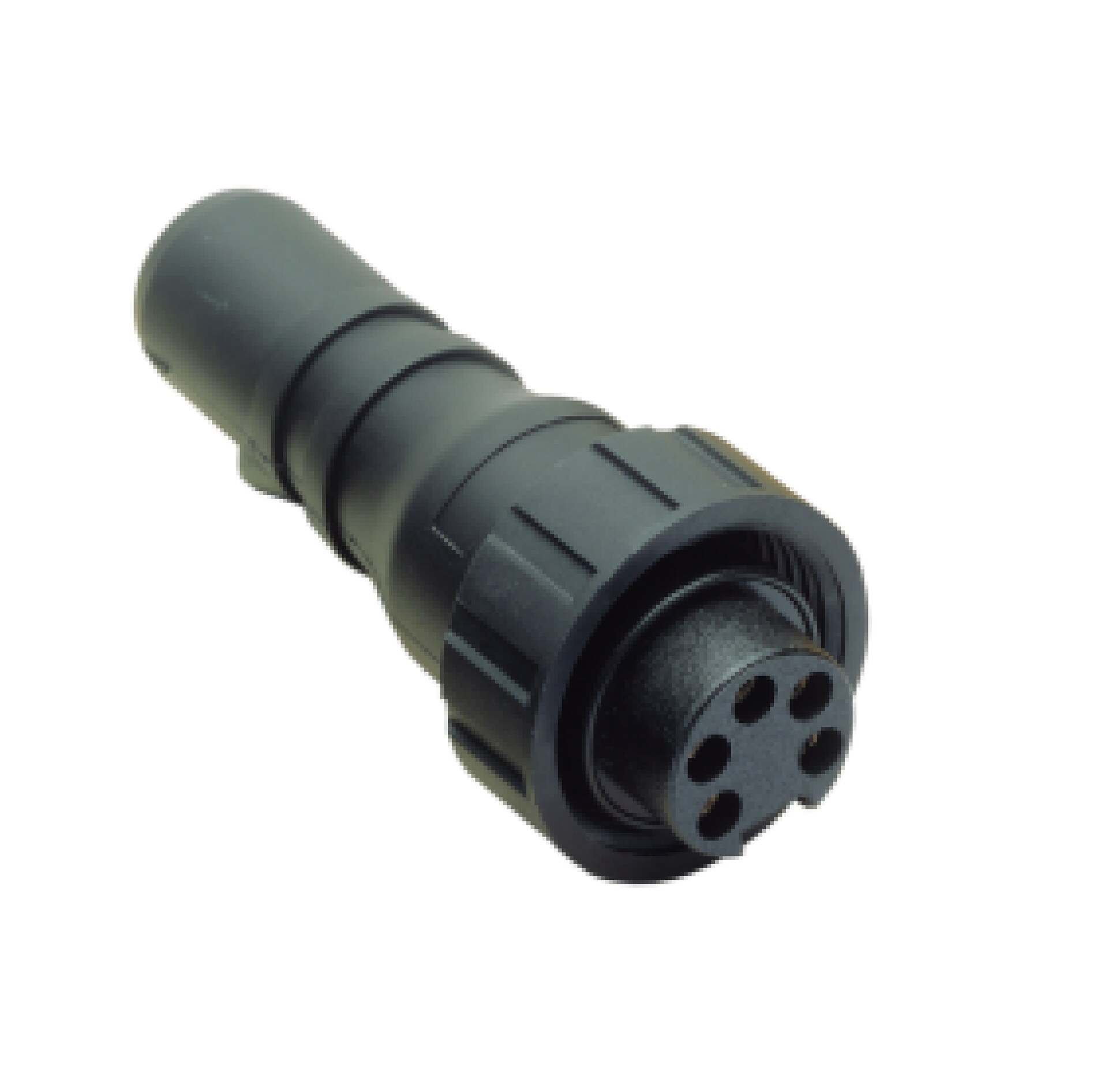

The SICK DOS-7805-GKEND is a shielded female connector with 7/8" 5-pin straight design, suitable for DeviceNet™ and CANopen field bus technology applications, featuring IP67 protection and robust operating temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOS-7805-GKEND | Connectors and cables
Brand: SICK
SKU: 6028329
Alternatively Known As: 7/8 inch 5-pin female connector, DeviceNet connector, CANopen connector, IP67 industrial connector
Technical Specifications
- Connection type head A: Female connector, 7/8", 5-pin, straight
- Shielding: Shielded
- Permitted cross-section: ≤ 1.5 mm²
- Reference voltage: ≤ 250 V AC
- Current loading: 9 A
- Signal type: DeviceNet™, CANopen
- Special feature: Terminal resistor
- Enclosure rating: IP67
- Operating temperature: -40 °C to +90 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Female connector, 7/8", 5-pin, straight design
- Shielded for enhanced signal integrity
- Terminal resistor integrated for field bus technology
- IP67 enclosure rating for dust and water protection
- Operating temperature range from -40 °C to +90 °C
- Supports current loading up to 9 A
- Permitted cross-section up to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors and field bus systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Field bus technology networks such as DeviceNet™ and CANopen
- Harsh environments requiring IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated design reduces need for frequent replacements, minimizing waste
- Shielding reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOS-7805-GKEND connector is available for immediate purchase, ideal for industrial automation and field bus technology applications.
