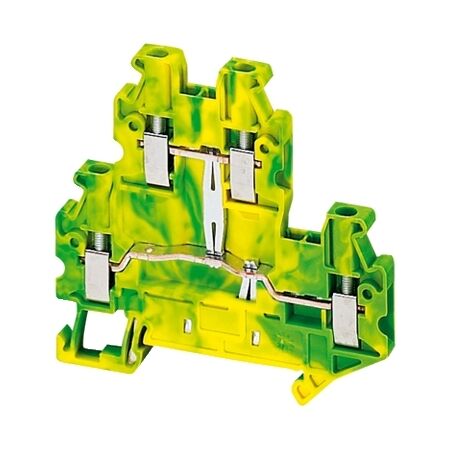

Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 2,5mm², GRE

Double Level Screw Terminal | 4 Points | 2.5mm² Protective Earth | GRE by Clipsal

BRAND: Clipsal

SKU: NSYTRV24DPE

$8.10 List price: $10.20

+ −

30 Days Return Delivery Options

Double level screw terminal with 4 points and 2.5mm² capacity—ideal for industrial electrical installations. Built for enhanced connectivity, with reliable screw terminal connections.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 2,5mm², GRE

Brand: Clipsal

SKU: NSYTRV24DPE

Alternatively Known As: Linergy Terminal Block, Protective Earth Terminal, Double Level Terminal Block

Technical Specifications

Nominal cross section: 2.5 mm²
Connections: 1 x screw terminal upstream, 1 x screw terminal downstream
Tightening torque: 0.5...0.6 N.m
Dielectric strength: 1000 V conforming to IEC 60243-1
Ambient air temperature for operation: -40...130 °C
Material: Polyamide 6/6 insulating case
Dimensions (H x L x W): 65mm x 69.9mm x 5.2mm
Weight: 0.1 kg

Key Features

Double level design with 4 points for enhanced connectivity.
Screw terminal connections for reliable performance.
Compatible with various PrismaSeT and TeSys enclosures.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Complies with relevant IEC standards for safety and performance.

Environmental Benefits

Halogen free plastic parts contribute to safer disposal.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Double Level Protective Earth is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRV24DPE (NSYTRV24DPE, 294 Kb) [Download]
