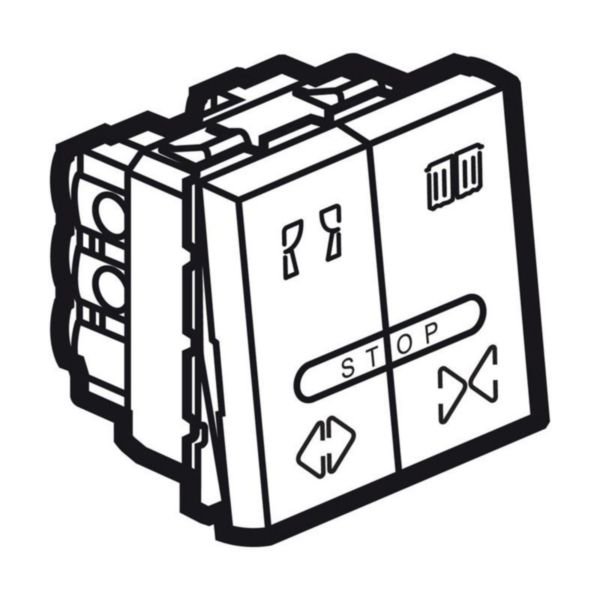

Double Push-Button Curtain Control | 10 A Rating | 2 Modules | Magnesium Finish | @EA of 1 | by Legrand
The Double Push-Button Curtain Control is designed for seamless automation of curtains, featuring a robust 10 A rating and a sleek magnesium finish. Ideal for both residential and commercial applications, this switch integrates effortlessly with automatic curtain systems, ensuring convenience and style in your home or office.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Push-Button Curtain Control | 10 A Rating | 2 Modules | Magnesium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573736
Alternatively Known As: Curtain control switch, double push-button switch, curtain control push button, 2 module curtain switch
Technical Specifications
- Rated current: 10 A
- Nominal voltage: 250 V
- Number of buttons: 3
- Material: Thermoplastic, magnesium finish
- Mounting method: Module frame
- Connection type: Screwed terminal
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature: -20 to 40 °C
- Cable section compatibility: 1.5 mm²
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Double push-button for curtain control with 10 A rating
- Designed for control via automatic box (N/O mechanism)
- 2 modules size with magnesium finish
- Square version Arteor™ hotel equipment
- Mechanisms supplied with rocker plates
- Screwed terminal connection
- IP20 degree of protection
- Rated voltage 250 V
- Mechanical controllable rocker operation
- Halogen free thermoplastic material
- Glossy untreated surface finish
- Label space for information
- IK04 impact strength
- Operating temperature range -20 to 40 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Home automation curtain control
- Residential and commercial window treatments
- Integration with automatic curtain control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction for long product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Double Push-Button for Curtain Control 10A 2 Modules Magnesium is available for immediate purchase, ideal for residential and commercial automated curtain control applications.
