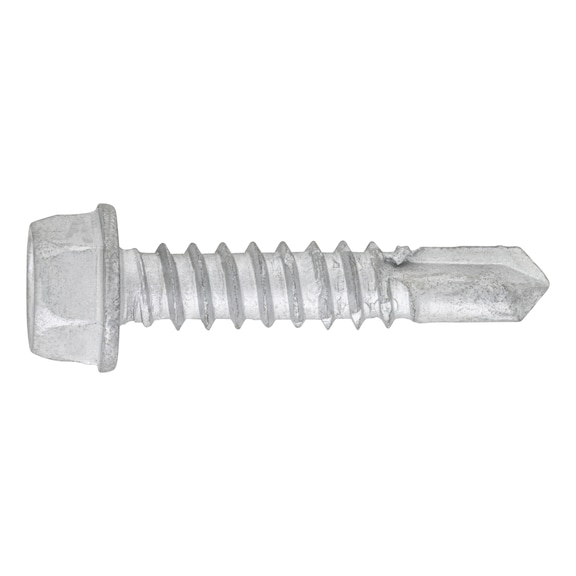

Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 25 PCS | by Wurth
The piasta® drilling screw features a hexagon head made of A2 stainless steel with a hardened steel drill tip, designed for efficient metal profile fastening. Ideal for construction and industrial applications, this self-tapping screw reduces assembly time by at least 50% and allows drilling without center punching, making it perfect for attaching metal profiles to steel or aluminum substructures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screw Hexagon Head A2 Stainless Steel | Drill Tip & Moulded Thread | 25 PCS | by Wurth
Brand: Wurth
SKU: 214814832
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal profile screw, Stainless steel drilling screw
Technical Specifications
- Material: Bimetal (A2 stainless steel with hardened steel drill tip)
- Surface: Flake zinc
- Head type: Hexagon head with collar
- Drive type: Hexagon (WS8)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 4.8 mm
- Length: 32 mm
- Head diameter: 10.9 mm
- Head height: 5.4 mm
- Drill tip length: 6.5 mm
- Screw-thread length with drill tip: 29 mm
- Max. material thickness to be drilled through (metal): 4.4 mm
- Max. substructure thickness: 3.0 mm
- Min./max. attachment thickness: 1.8-17.0 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Approval: ETA-10/0184
- Dimensions (H x L x W): 5.4mm x 32mm x 10.9mm
- Weight: 0.1 kg
Key Features
- Reduction of assembly time by at least 50% using drill bit tip
- Drilling without centre punching
- Thread moulding and securing all in one operation
- Hexagon head with collar and hexagon drive
- Self-tapping screw thread with drilling tip
- Suitable for max. material thickness to be drilled through: 4.4 mm
- Approved according to ETA-10/0184
Professional Installation Requirements
- Installation should be performed by trained professionals using appropriate tools and safety equipment to ensure compliance with installation speed and torque specifications.
Applications
- Attaching metal profiles to metal substructures made of steel or aluminium
- Suitable for component combinations steel/steel, aluminium/steel, aluminium/aluminium
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth piasta® drilling screw hexagon head A2 stainless steel with drill tip 25 PCS is available for immediate purchase. Ideal for metal profile fastening in construction and industrial applications.
